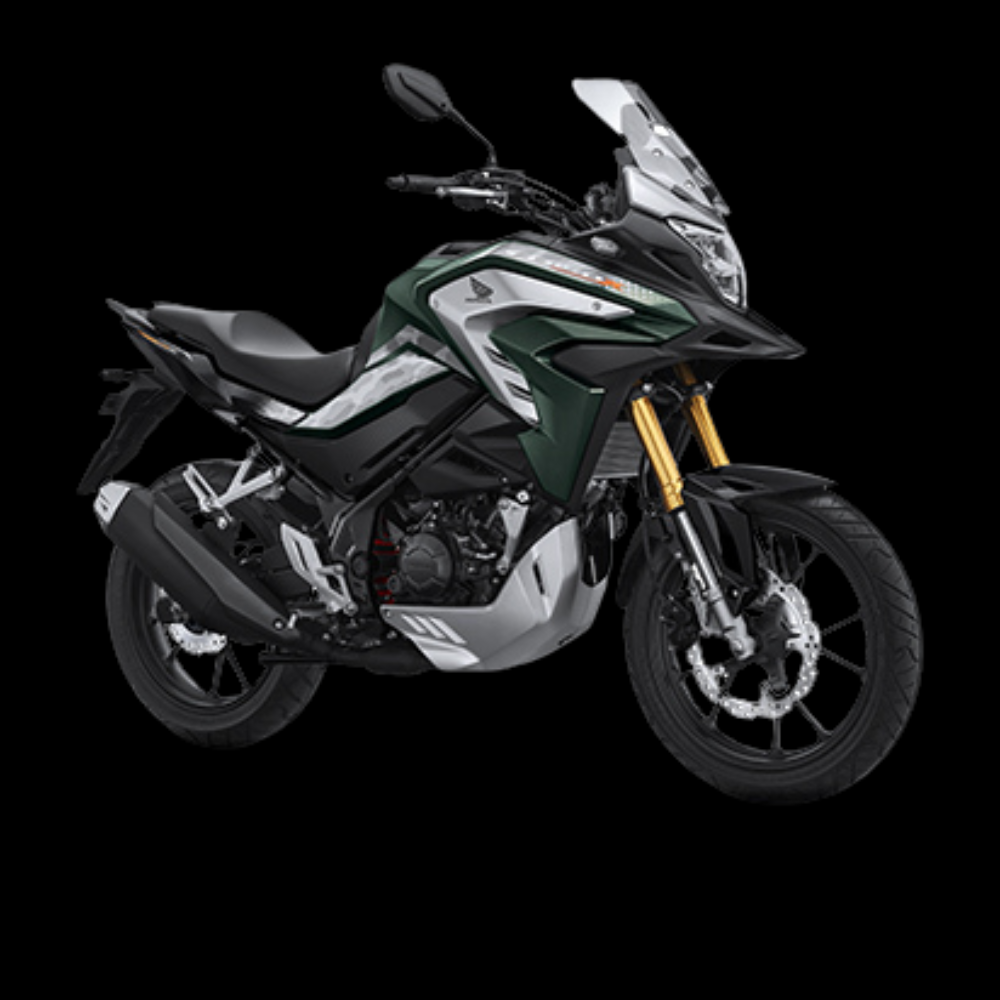

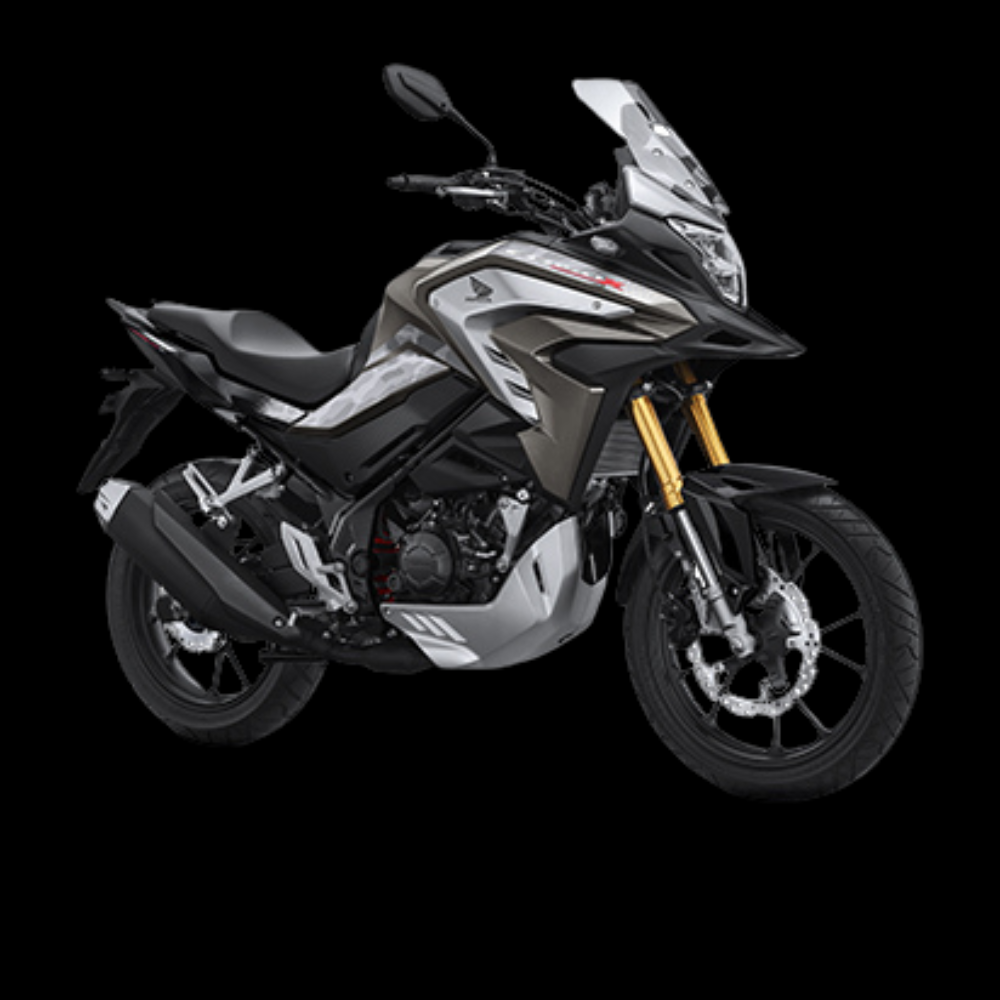

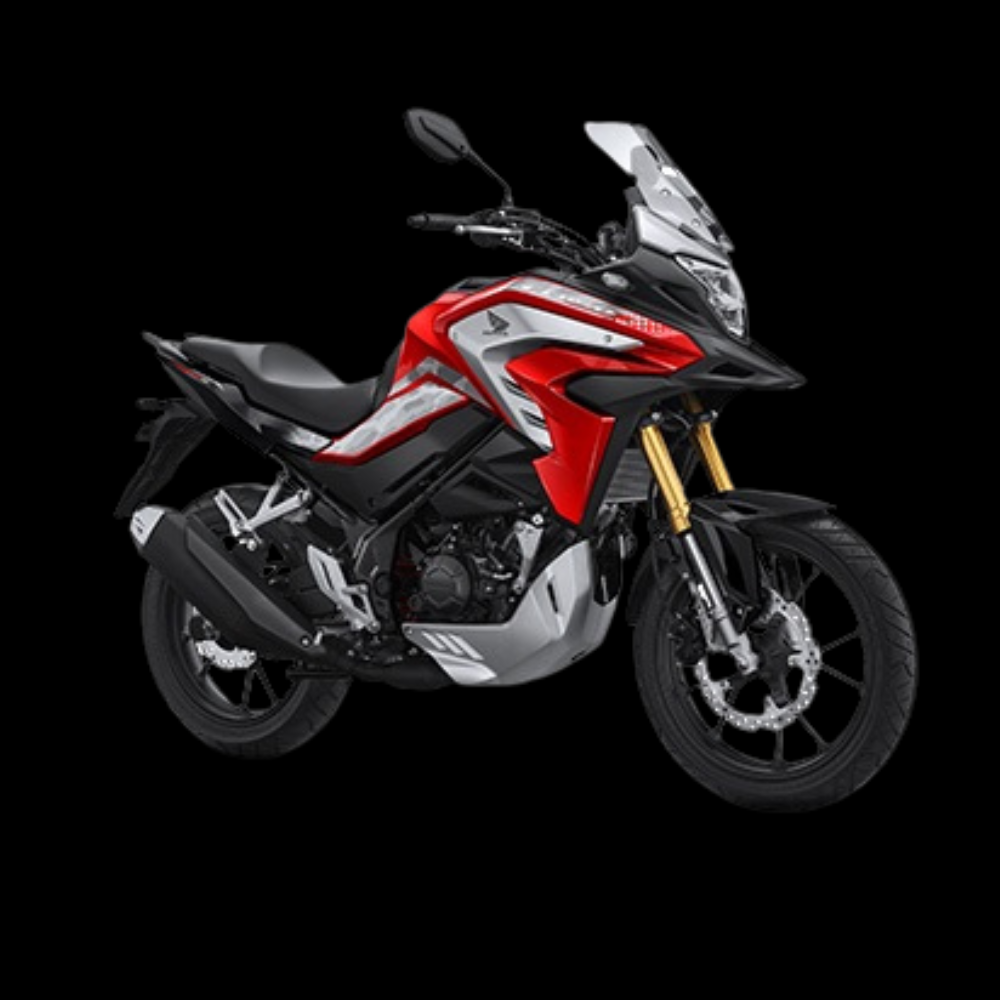

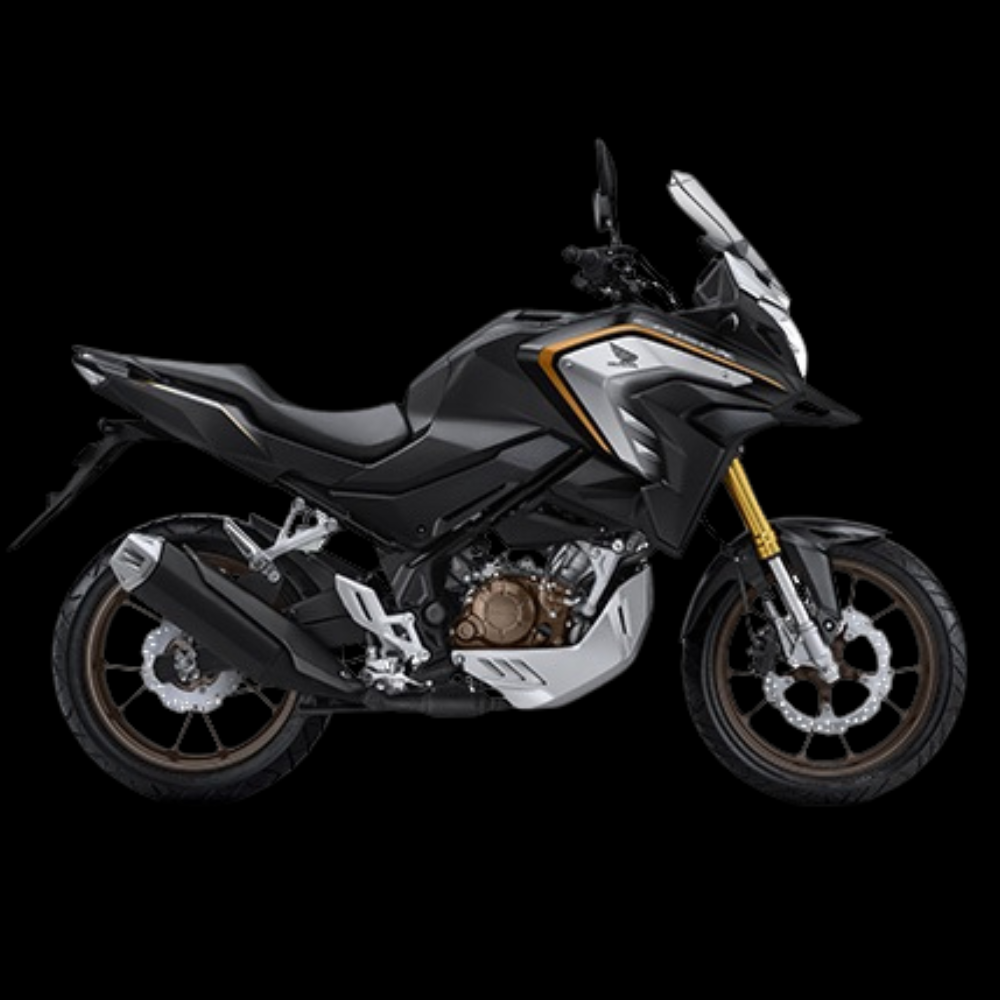

HONDA CB150X

HONDA CB150X SPECIFICATION

Engine :

• Engine Type: 4-Stroke, DOHC, 4-Valve
• Cooling System: Liquid-Cooled
• Displacement: 149.16 cc
• Fuel System: PGM-FI (Programmed Fuel Injection)
• Bore × Stroke: 57.3 mm × 57.843 mm
• Compression Ratio: 11.3 : 1
• Maximum Power: 11.5 kW (15.6 PS) @ 9,000 rpm
• Maximum Torque: 13.8 Nm @ 7,000 rpm
• Starting System: Electric Starter
• Clutch Type: Wet Multi-Plate Clutch with Coil Spring
• Transmission Type: 6-Speed Manual
• Gear Shift Pattern: 1-N-2-3-4-5-6
• Lubrication System: Wet Sump

Chassis, Suspension & Braking :

• Frame Type: Diamond (Truss), Steel
• Front Suspension: Showa 37 mm Inverted Telescopic Fork, 150 mm Stroke
• Rear Suspension: Swing Arm with Single Shock (Pro-Link System)
• Front Tire: 100/80-17M/C 52P, Tubeless
• Rear Tire: 130/70-17M/C 62P, Tubeless
• Front Brake: Wavy Disc Brake
• Rear Brake: Wavy Disc Brake

Dimensions & Capacity :

• Overall Dimensions (L × W × H): 2,031 mm × 796 mm × 1,309 mm
• Seat Height: 817 mm
• Wheelbase: 1,315 mm
• Ground Clearance: 181 mm
• Curb Weight: 139 kg

Capacity :

• Fuel Tank Capacity: 12 Liters
• Engine Oil Capacity: 1.1 Liters

Electrical :

• Battery Type: 12V – 5Ah Maintenance-Free (MF) Battery
• Ignition System: Full Transistorized
• Spark Plug Type:
  • NGK MR9C09N
  • DENSO U27EPR-N9
