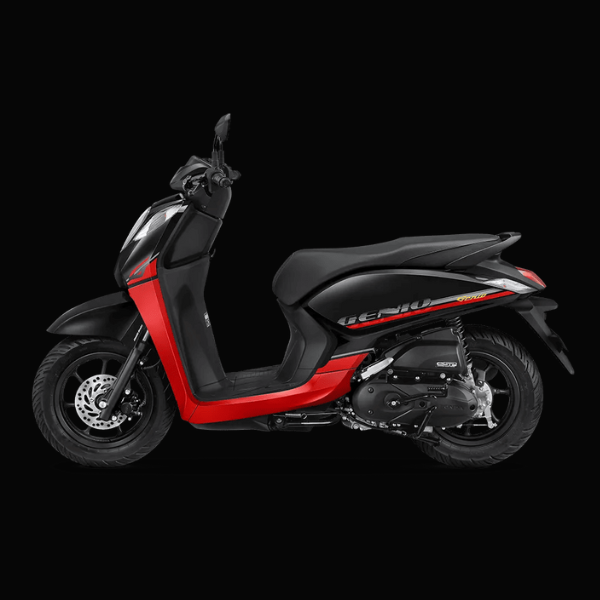

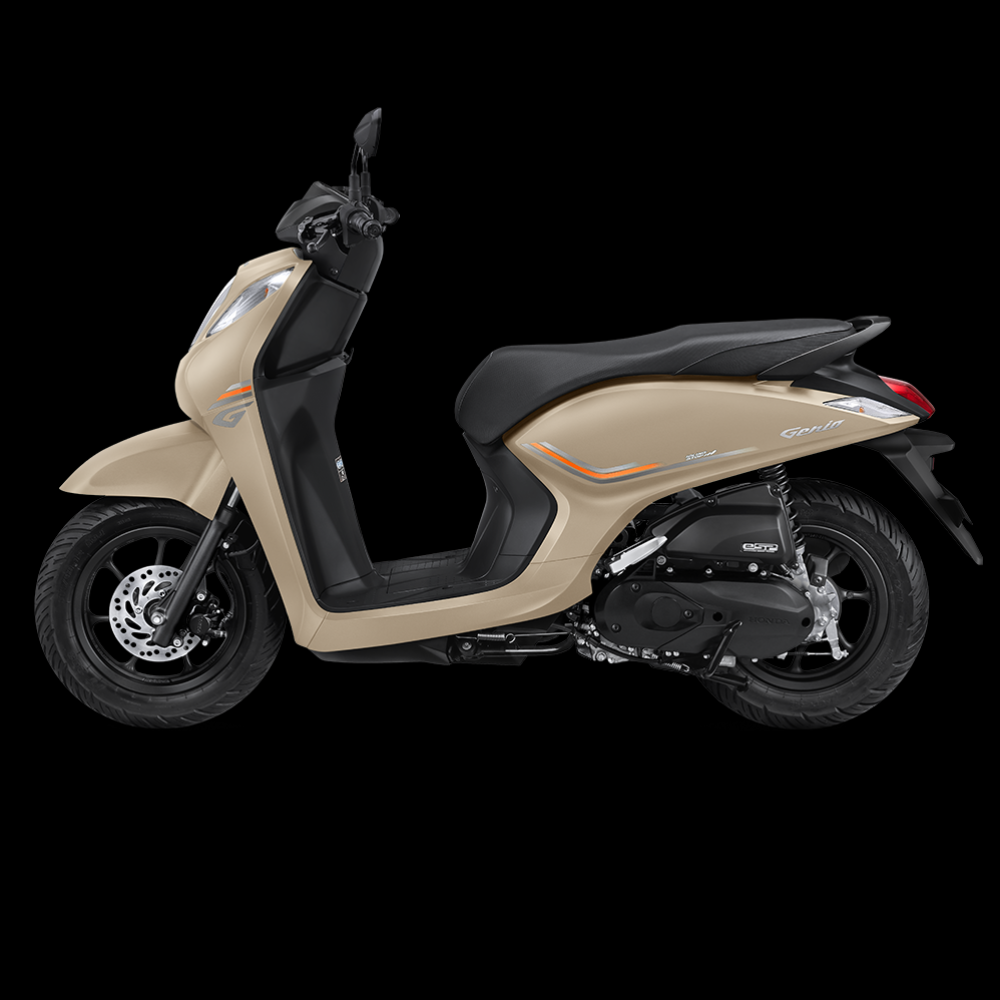

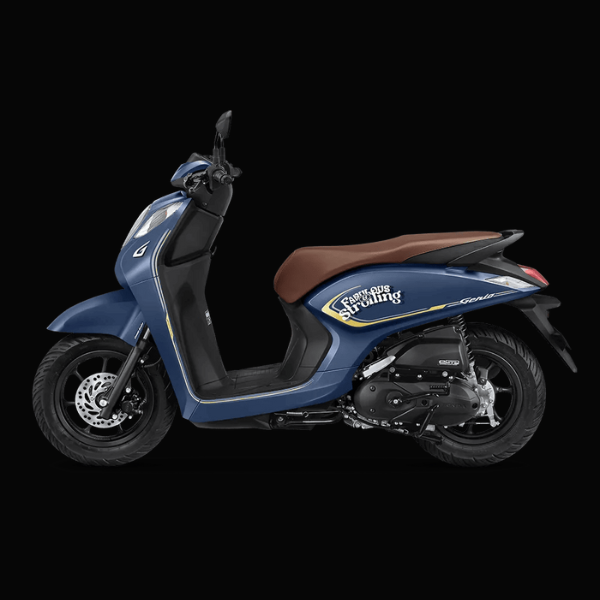

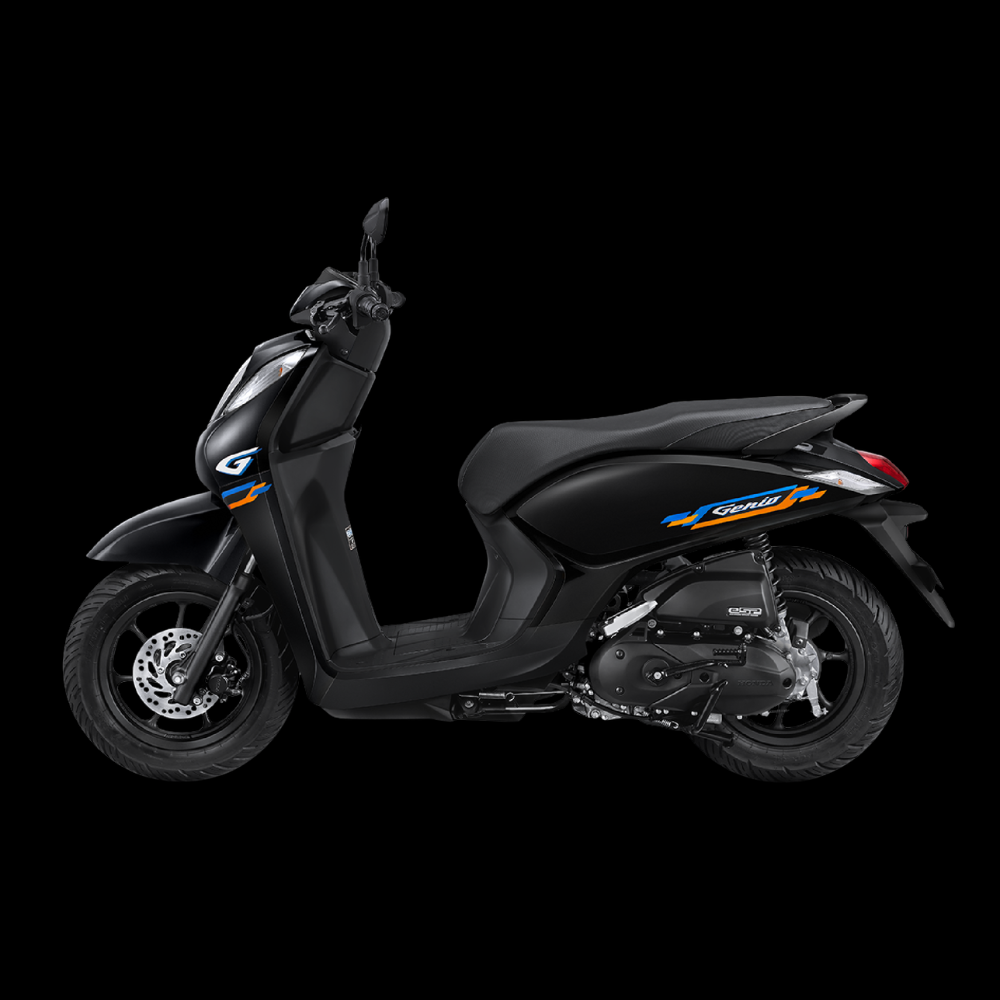

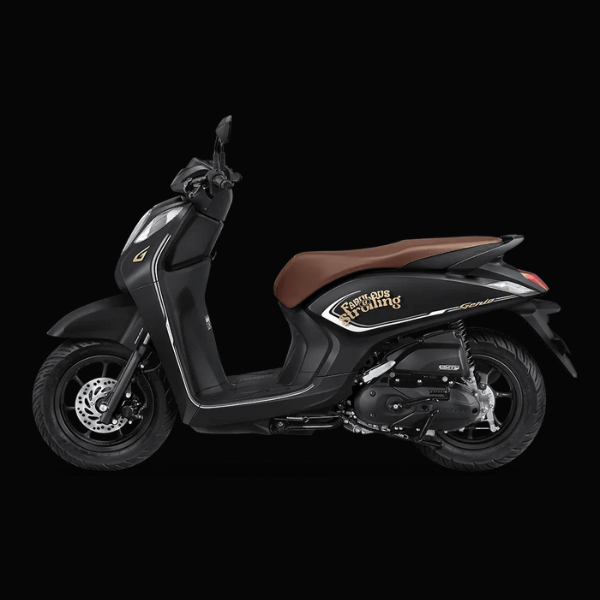

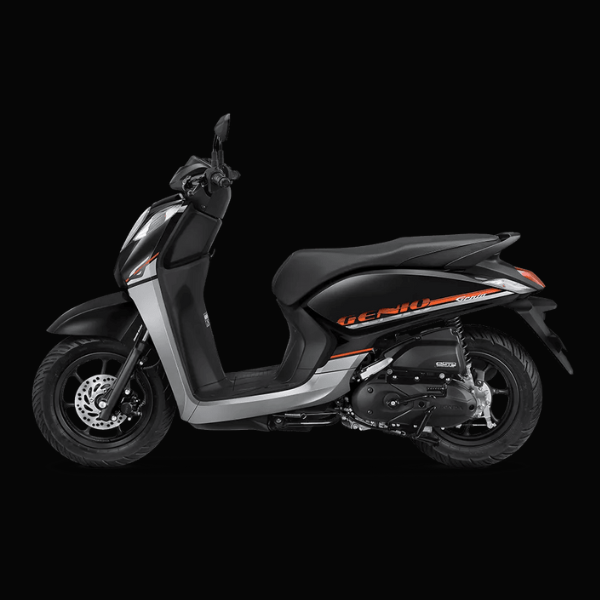

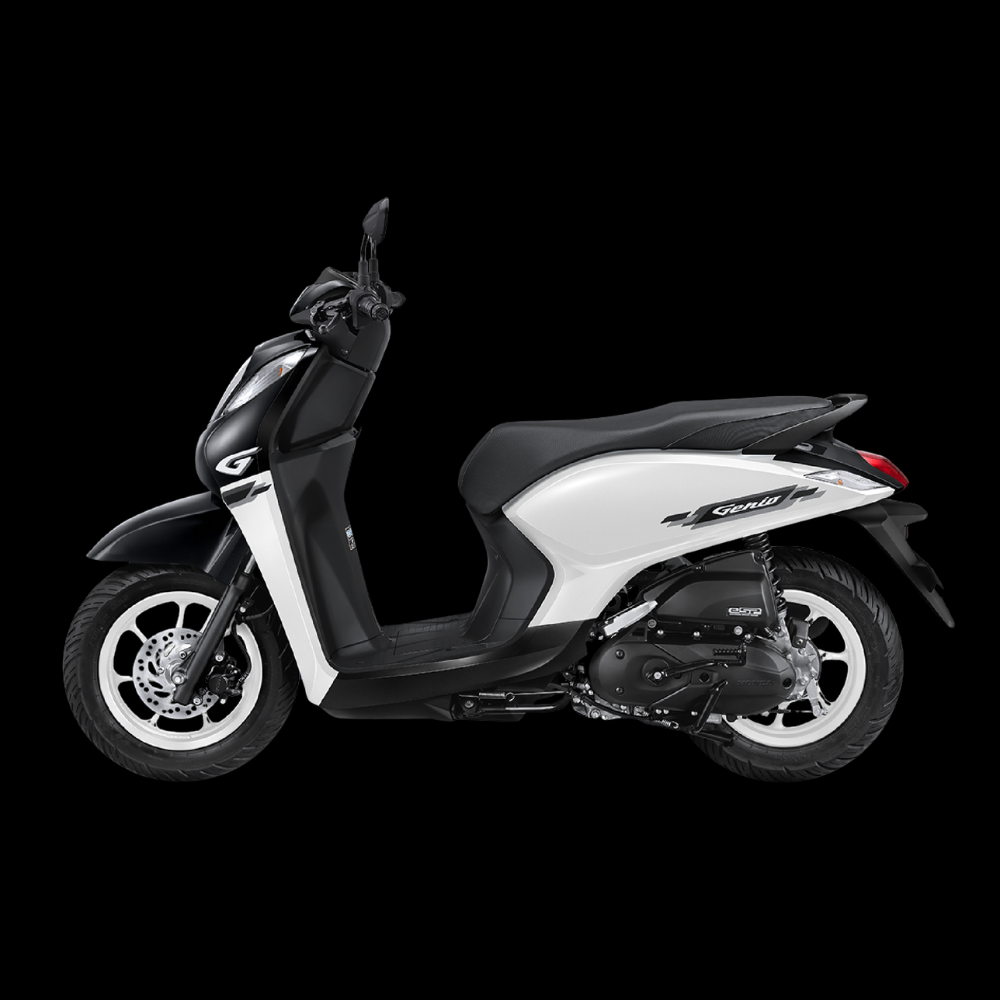

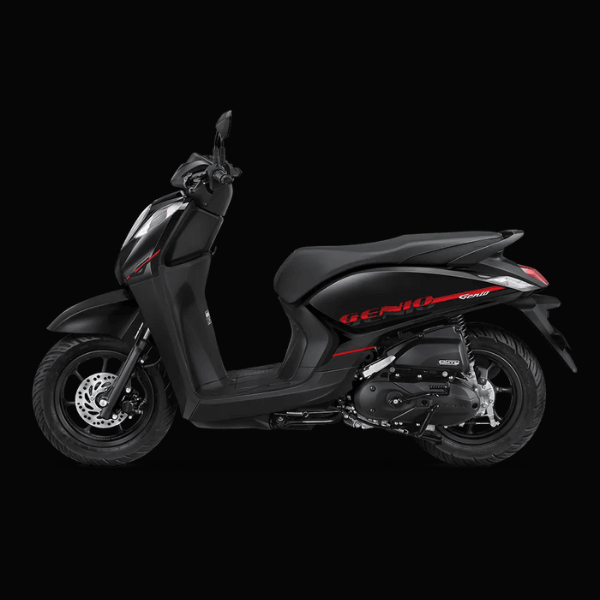

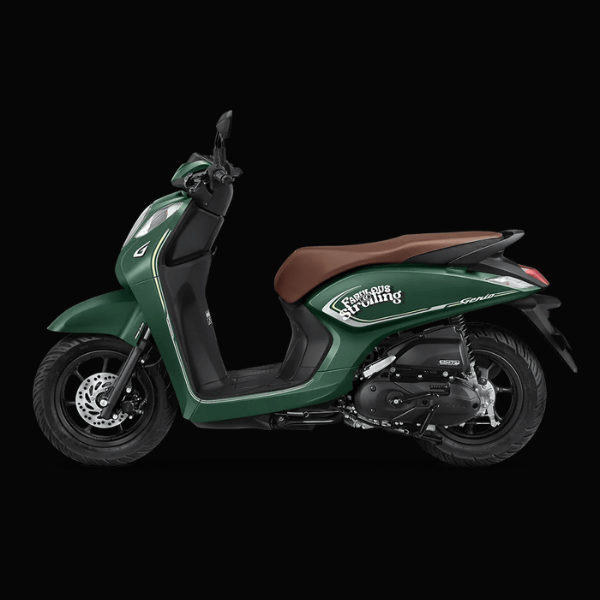

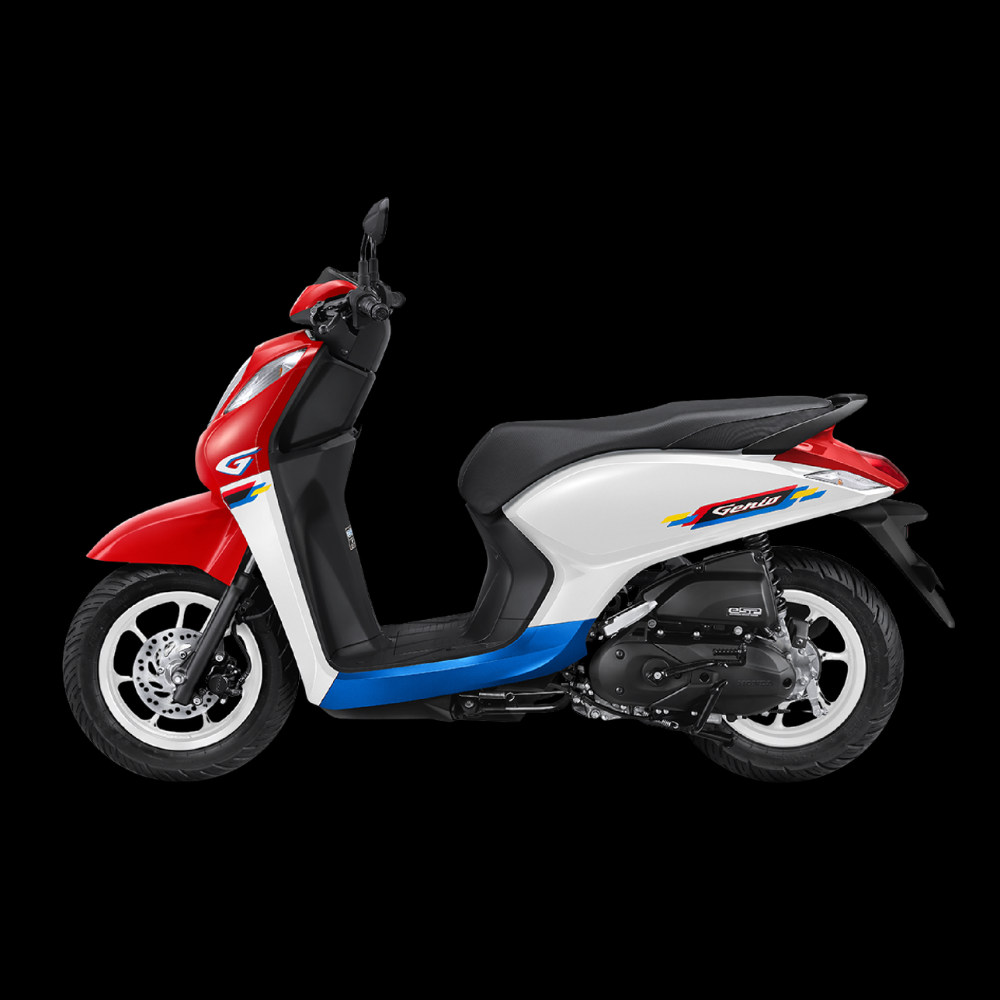

HONDA GENIO 110cc

HONDA GENIO 110 SPECIFICATION

Engine :

• Engine Type: 4-Stroke, SOHC, eSP
• Cooling System: Air-Cooled
• Fuel System: PGM-FI (Programmed Fuel Injection)
• Displacement: 109.55 cc
• Bore × Stroke: 47.0 mm × 63.1 mm
• Compression Ratio: 10.0 : 1
• Maximum Power: 6.6 kW (9.0 PS) @ 7,500 rpm
• Maximum Torque: 9.3 Nm @ 5,500 rpm
• Transmission Type: Automatic V-Matic
• Starting System: Electric & Kick Starter
• Clutch Type: Automatic Dry Centrifugal Clutch
• Lubrication System: Wet Sump
• Engine Oil Capacity: 0.65 Liter (Periodic Oil Change)

Chassis, Suspension & Braking :

• Frame Type: Underbone – eSAF (Enhanced Smart Architecture Frame)
• Front Suspension: Telescopic Fork
• Rear Suspension: Swing Arm with Single Shock Absorber
• Front Tire: 100/90-12 59J, Tubeless
• Rear Tire: 110/90-12 64J, Tubeless
• Front Brake: Hydraulic Single-Piston Disc Brake
• Rear Brake: Drum Brake
• Braking System: Combi Brake System (CBS)

Dimensions & Capacity :

• Overall Dimensions (L × W × H): 1,862 × 694 × 1,061 mm
• Wheelbase: 1,251 mm
• Ground Clearance: 150 mm
• Seat Height: 744 mm
• Curb Weight:
  • CBS Variant: 92 kg
  • CBS-ISS Variant: 93 kg
• Fuel Tank Capacity: 4.2 Liters

Electrical :

• Ignition System: Full Transistorized Ignition
• Battery Type:
  • CBS Variant: 12V 3Ah Maintenance-Free (MF) Battery
  • CBS-ISS Variant: 12V 5Ah Maintenance-Free (MF) Battery
• Spark Plug Type: NGK MR9C-9N
