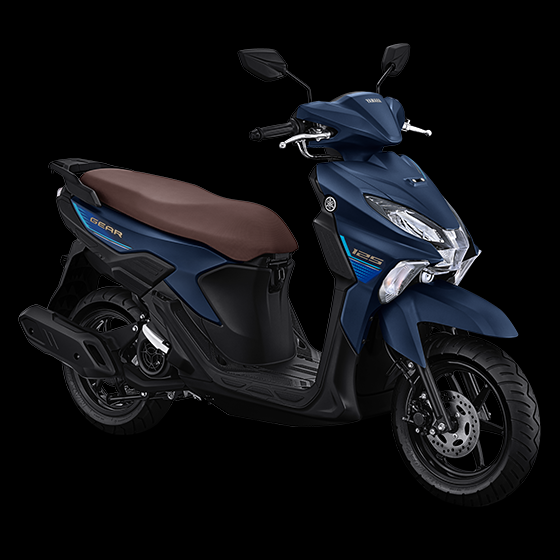

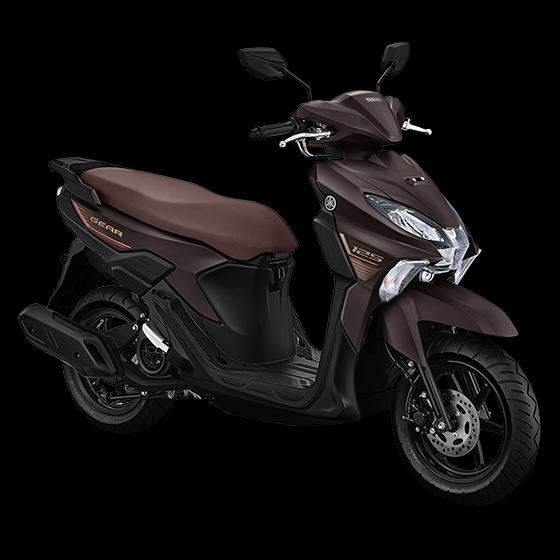

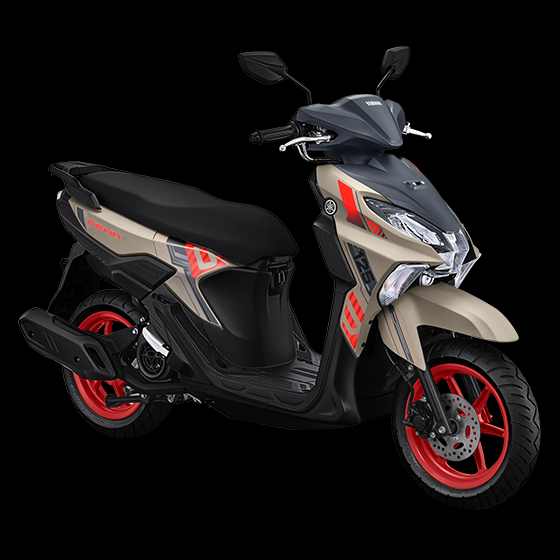

YAMAHA GEAR ULTIMA HYBRID 125

YAMAHA GEAR ULTIMA  125 SPECIFICATION

Engine :

• Engine Type: Air-Cooled, 4-Stroke, SOHC
• Cylinder Configuration: Single Cylinder
• Bore × Stroke: 52.4 mm × 57.9 mm
• Displacement: 124.86 cc
• Maximum Power: 6.2 kW @ 6,500 rpm
• Maximum Torque: 10.6 Nm @ 4,500 rpm
• Engine Oil Capacity:
  • Assembly: 0.84 L
  • Periodic Change: 0.80 L
• Fuel System: Fuel Injection
• Clutch Type: Dry Centrifugal Clutch
• Transmission Type: Automatic V-Belt
• Lubrication System: Wet Sump
• Starting System: Electric Starter

Chassis & Suspension :

• Frame Type: Underbone
• Front Suspension: Telescopic Fork
• Rear Suspension: Unit Swing Suspension
• Front Tire: 110/70-12 47L
• Rear Tire: 110/70-12 47L
• Front Brake: Disc Brake
• Rear Brake: Drum Brake

Dimensions & Capacity :

• Overall Dimensions (L × W × H): 1,850 mm × 685 mm × 1,075 mm
• Wheelbase: 1,280 mm
• Ground Clearance: 135 mm
• Seat Height: 750 mm
• Curb Weight: 95 kg
• Fuel Tank Capacity: 5.1 L

Electrical :

• Ignition System: TCI (Transistor Controlled Ignition)
• Battery: YTZ6V
• Spark Plug Type: NGK CR6HSA
