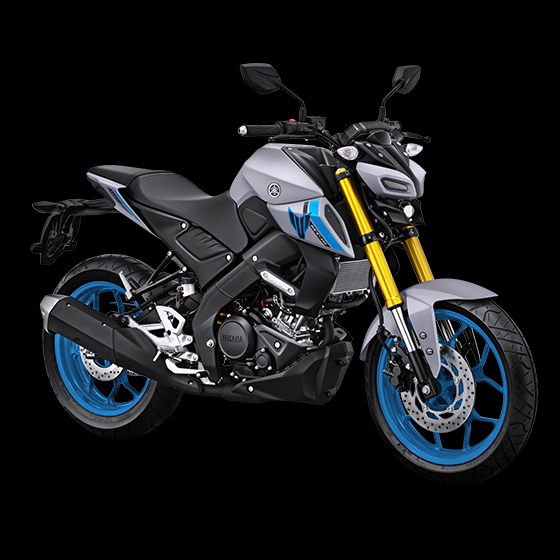

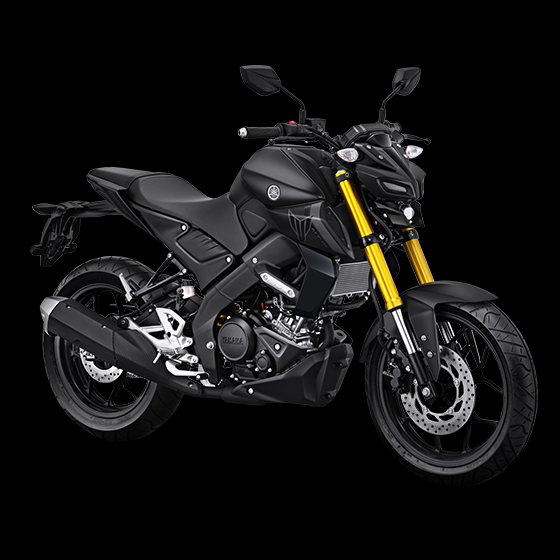

YAMAHA MT15

YAMAHA R15 SPECIFICATION

Engine :

• Engine Type: Liquid-Cooled, 4-Stroke, SOHC, 4-Valve, VVA
• Cylinder Configuration: Single Cylinder
• Displacement: 155.09 cc
• Bore × Stroke: 58.0 mm × 58.7 mm
• Compression Ratio: 11.6 : 1
• Maximum Power: 14.2 kW @ 10,000 rpm
• Maximum Torque: 14.7 Nm @ 8,500 rpm
• Starting System: Electric Starter
• Lubrication System: Wet Sump
• Engine Oil Capacity:
  • Total: 1.05 L
  • Periodic Change: 0.85 L
  • With Oil Filter Replacement: 0.95 L
• Fuel System: Fuel Injection
• Clutch Type: Wet Multi-Plate Assist & Slipper Clutch
• Transmission Type: Manual
• Gear Shift Pattern: 1-N-2-3-4-5-6

Chassis & Suspension :

• Frame Type: Deltabox
• Front Suspension: Inverted Telescopic Fork (USD Fork)
• Rear Suspension: Link-Type Monoshock
• Front Tire: 110/70-17M/C (54S)
• Rear Tire: 140/70-17M/C (66S)
• Front Brake: Disc Brake
• Rear Brake: Disc Brake

Dimensions & Capacity :

• Overall Dimensions (L × W × H): 1,965 mm × 800 mm × 1,065 mm
• Wheelbase: 1,335 mm
• Ground Clearance: 155 mm
• Seat Height: 810 mm
• Curb Weight: 133 kg
• Fuel Tank Capacity: 10.4 Liters

Electrical :

• Ignition System: TCI (Transistor Controlled Ignition)
• Battery: YTZ4V
• Spark Plug Type: NGK MR8E-9
