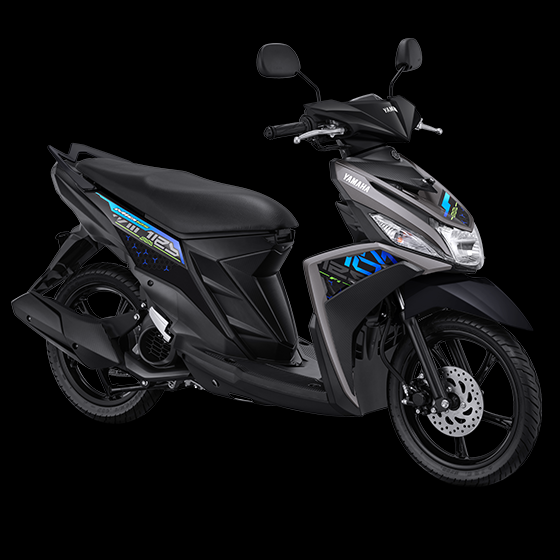

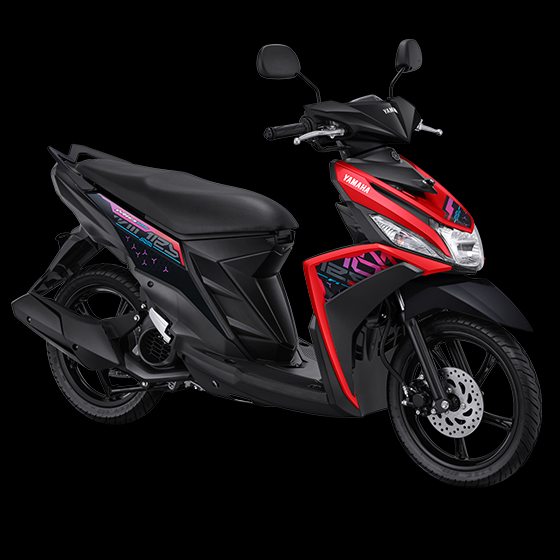

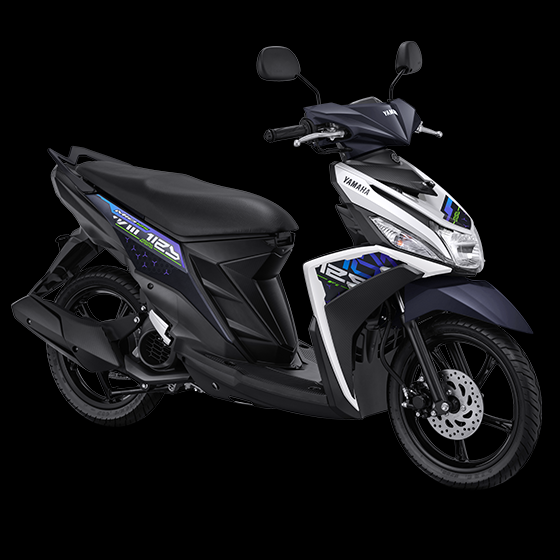

YAMAHA MIO M3 125

YAMAHA MIO M3 125 SPECIFICATION

Engine :

• Engine Type: Air-Cooled, 4-Stroke, SOHC
• Cylinder Configuration: Single Cylinder
• Bore × Stroke: 52.4 mm × 57.9 mm
• Displacement: 124.96 cc
• Compression Ratio: 9.5 : 1
• Maximum Power: 7.0 kW @ 8,000 rpm
• Maximum Torque: 9.6 Nm @ 5,500 rpm
• Starting System: Electric & Kick Starter
• Lubrication System: Wet Sump
• Engine Oil Capacity:
  • Total: 0.84 L
  • Periodic Change: 0.80 L
• Fuel System: Fuel Injection
• Clutch Type: Dry Centrifugal Automatic Clutch
• Transmission Type: Automatic V-Belt Transmission

Chassis & Suspension :

• Frame Type: Underbone
• Front Suspension: Telescopic Fork
• Rear Suspension: Unit Swing Suspension
• Front Tire: 70/90-14 34P (Tubeless)
• Rear Tire: 80/90-14 40P (Tubeless)
• Front Brake: Disc Brake
• Rear Brake: Drum Brake

Dimensions & Capacity :

• Overall Dimensions (L × W × H): 1,905 mm × 690 mm × 1,035 mm
• Wheelbase: 1,275 mm
• Ground Clearance: 135 mm
• Seat Height: 780 mm
• Curb Weight: 101 kg
• Fuel Tank Capacity: 4.2 L

Electrical :

• Ignition System: TCI (Transistor Controlled Ignition)
• Battery: YTZ4V / GTZ4V
• Spark Plug Type: NGK CR6HSA
