HONDA VARIO 125

HONDA VARIO 125 SPECIFICATION

Engine :

• Engine Type: 4-Stroke, SOHC, eSP, Liquid Cooled
• Engine Displacement: 124.8 cc
• Cooling System: Liquid Cooled
• Fuel System: PGM-FI
• Bore x Stroke: 52.4 x 57.9 mm
• Compression Ratio: 11.0:1
• Maximum Power: 8.2 kW (11.1 PS) @ 8,500 rpm
• Maximum Torque: 10.8 Nm (1.1 kgf·m) @ 5,000 rpm
• Transmission Type: Automatic, V-Matic
• Starting System: Electric
• Clutch Type: Automatic Centrifugal Clutch, Dry Type
• Lubrication Type: Wet
• Engine Oil Capacity: 0.8 L (periodic exchange)

Chassis & Suspension :

• Frame Type: Underbone
• Front Tire Size: 90/80 – 14 M/C 43P Tubeless
• Rear Tire Size: 100/80 – 14 M/C 48P Tubeless
• Front Brake Type: Wavy Disc Brake
• Rear Brake Type: Drum Brake
• Braking System: Combi Brake System (CBS)
• Front Suspension Type: Telescopic Fork
• Rear Suspension Type: Swing Arm with Single Shock Absorber

Dimensions & Weight :

• Length x Width x Height:
  • Vario 125: 1,919 x 687 x 1,075 mm

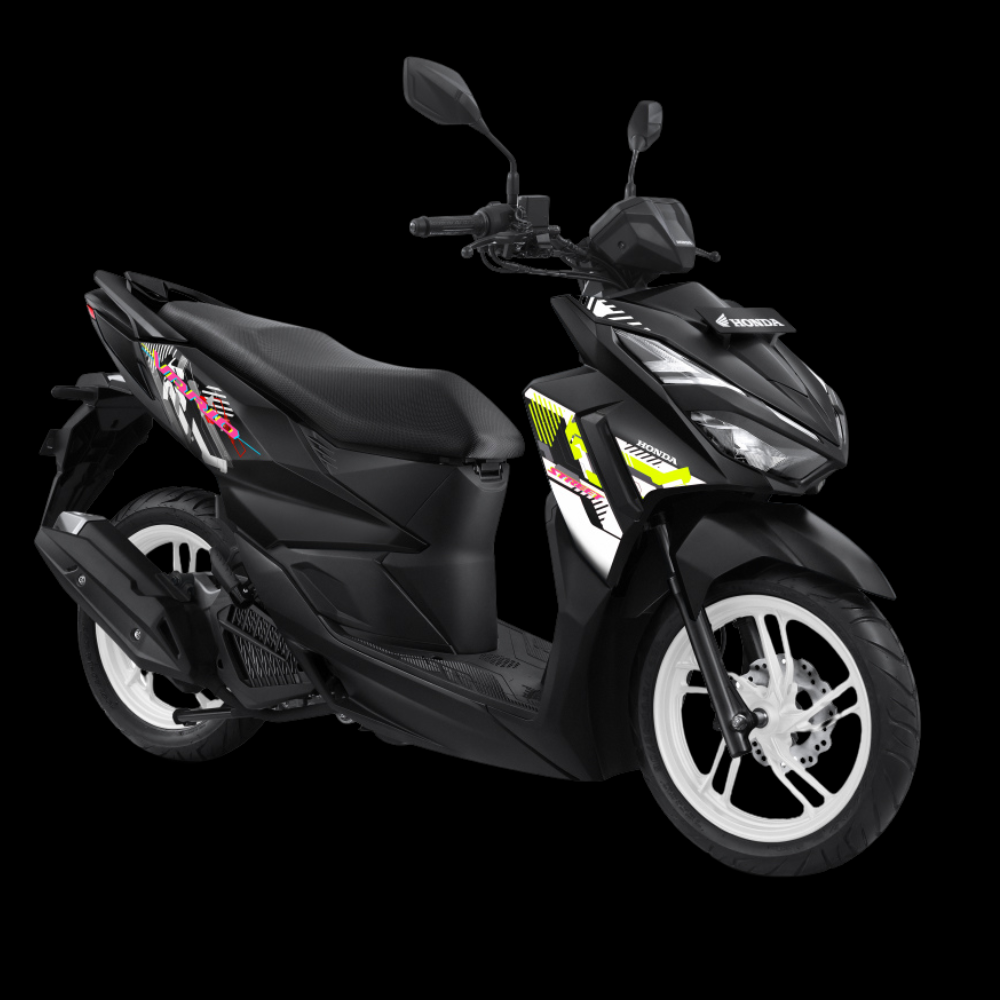

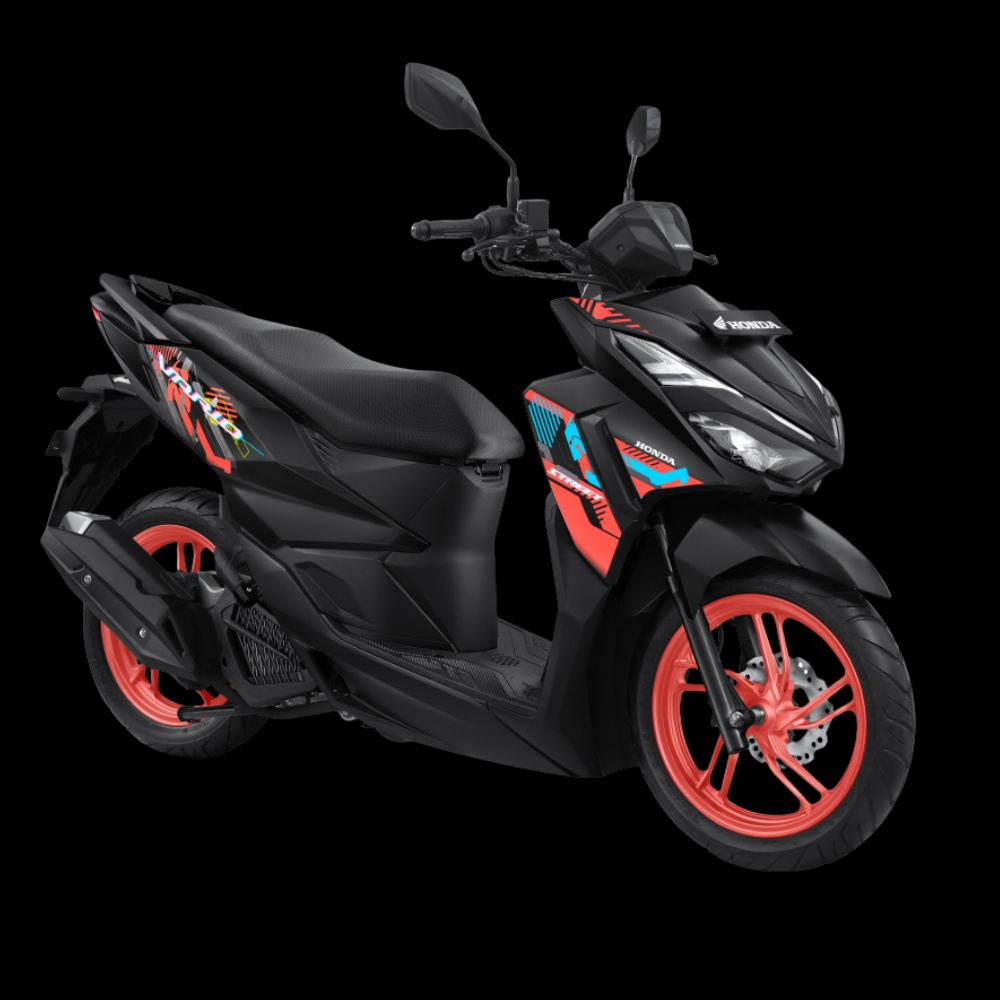

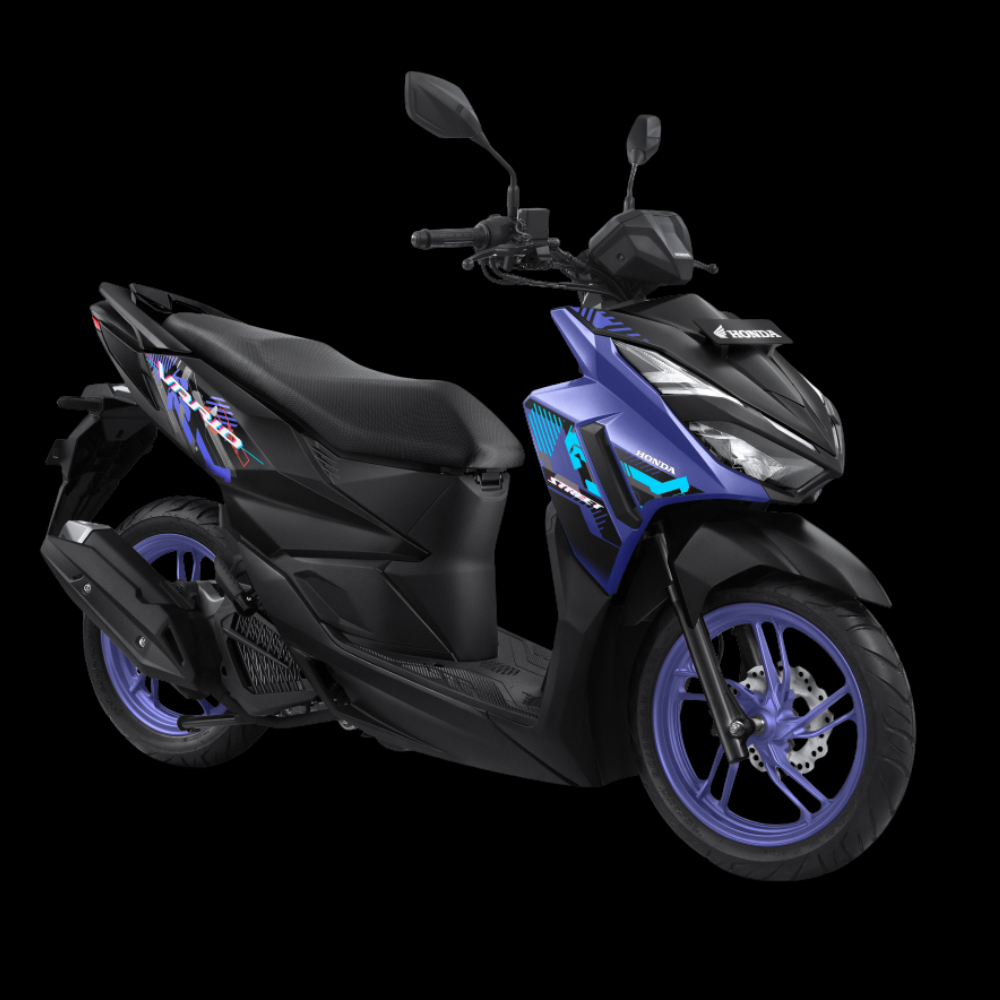

  • Vario 125 Street: 1,919 x 751 x 1,076 mm
• Wheelbase: 1,280 mm
• Ground Clearance: 131 mm
• Seat Height: 769 mm
• Curb Weight:
  • 111 kg (Street)
  • 112 kg (Vario 125)

Capacity :

• U-Box (Storage) Capacity: 18 liters
• Fuel Tank Capacity: 5.5 liters

Electrical System :

• Ignition Type: Full Transistorized
• Battery: MF 12V-5Ah
• Spark Plug Type: NGK CPR7EA-9 / Denso U22EPR9
