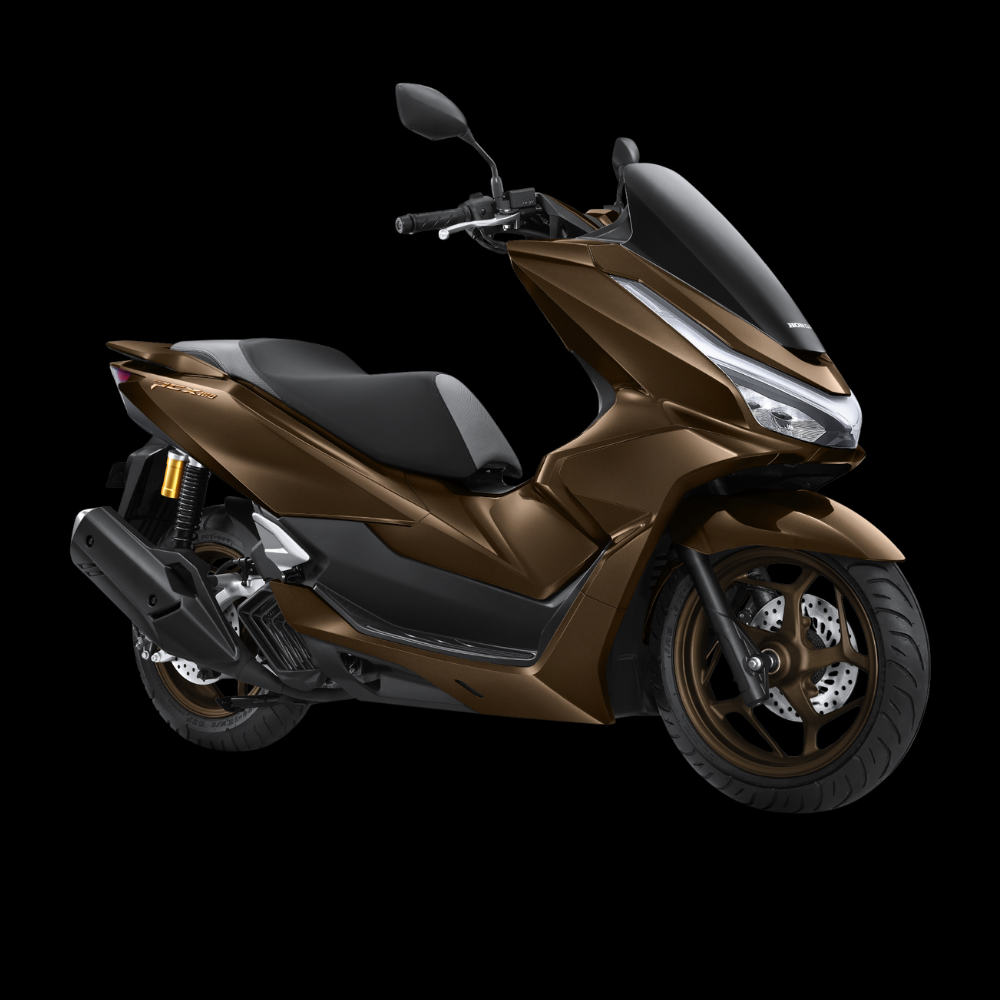

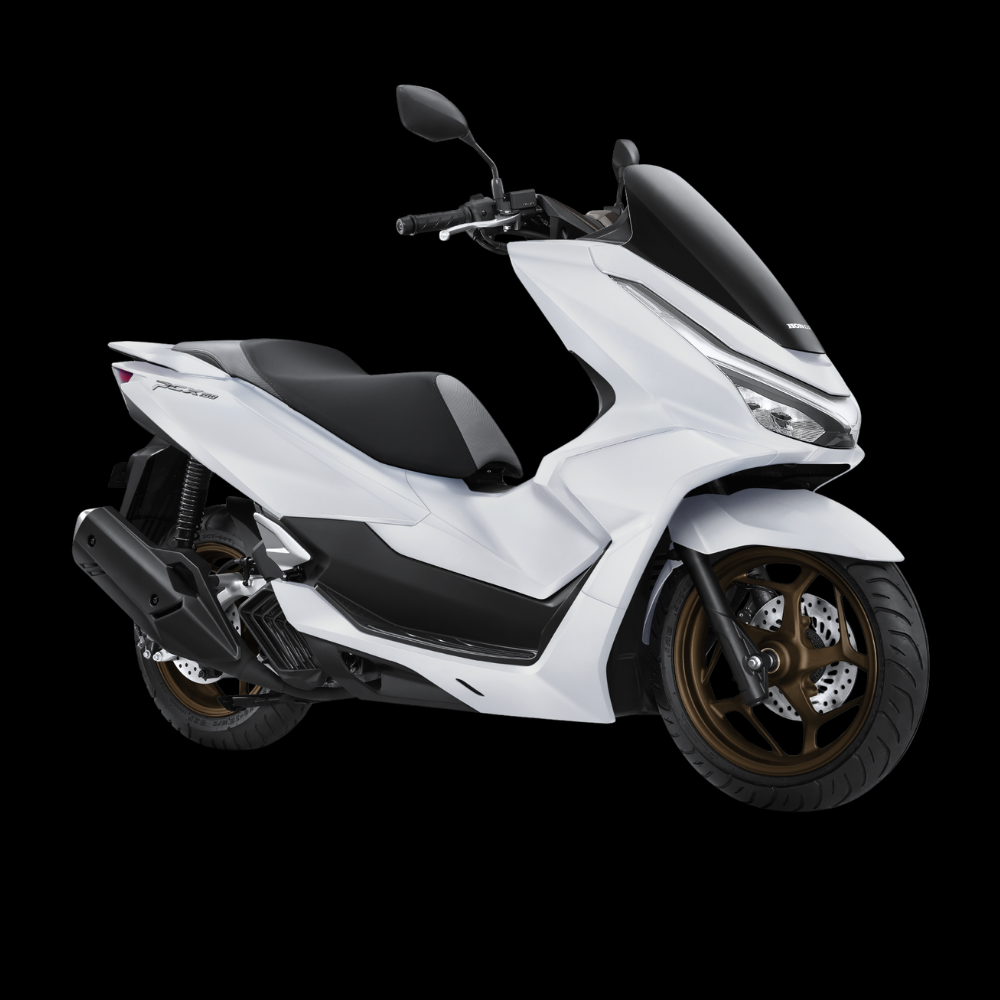

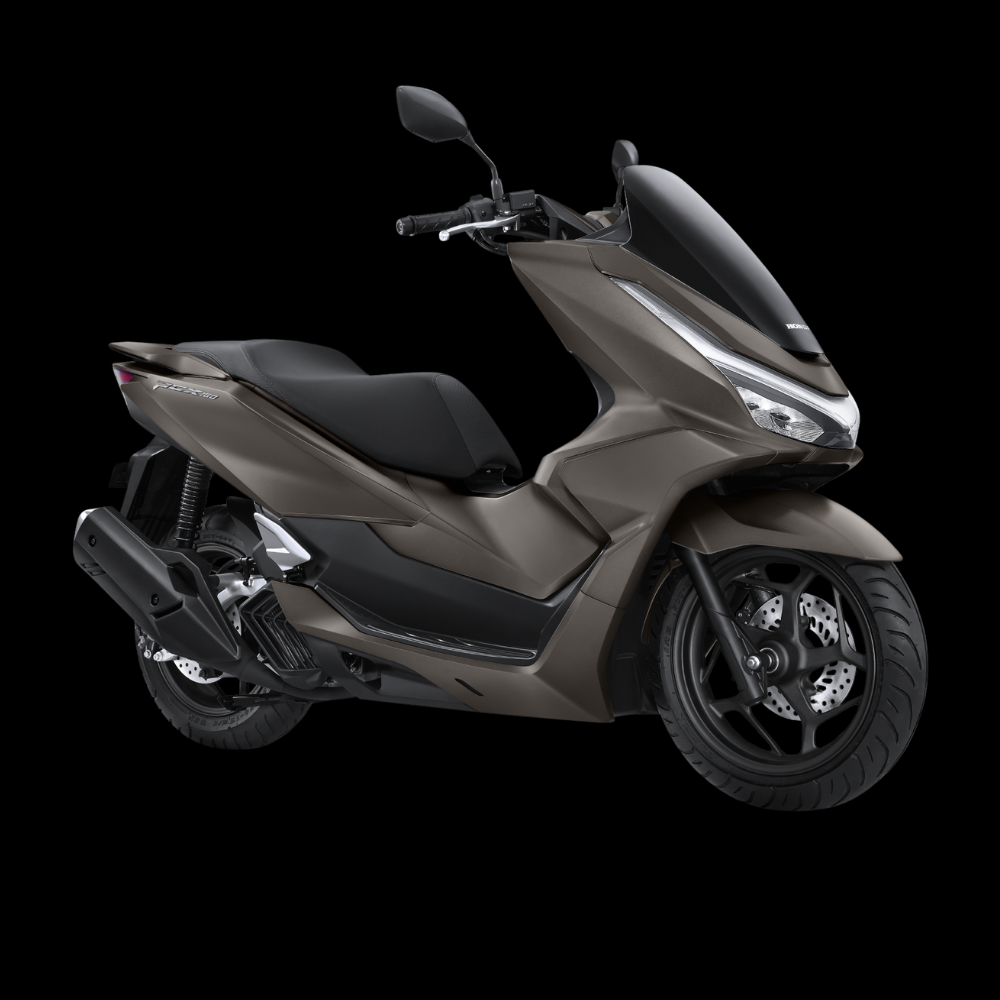

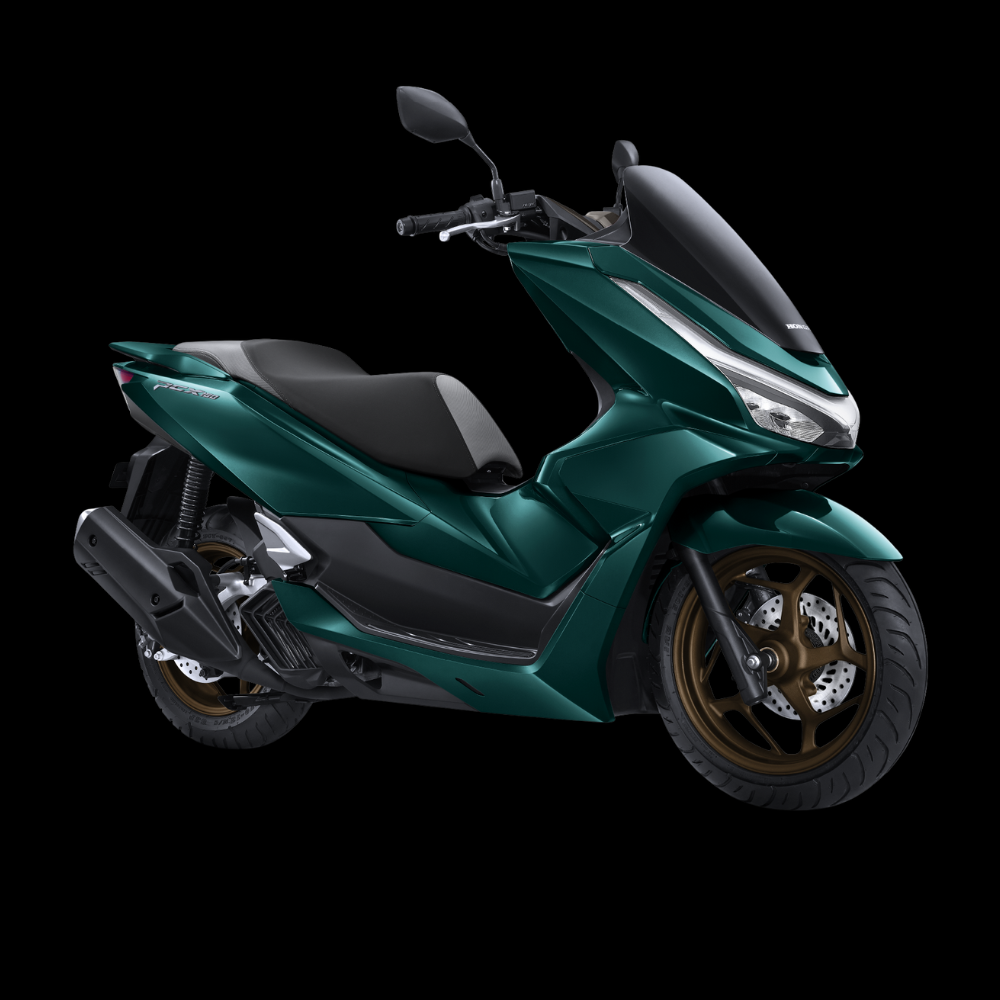

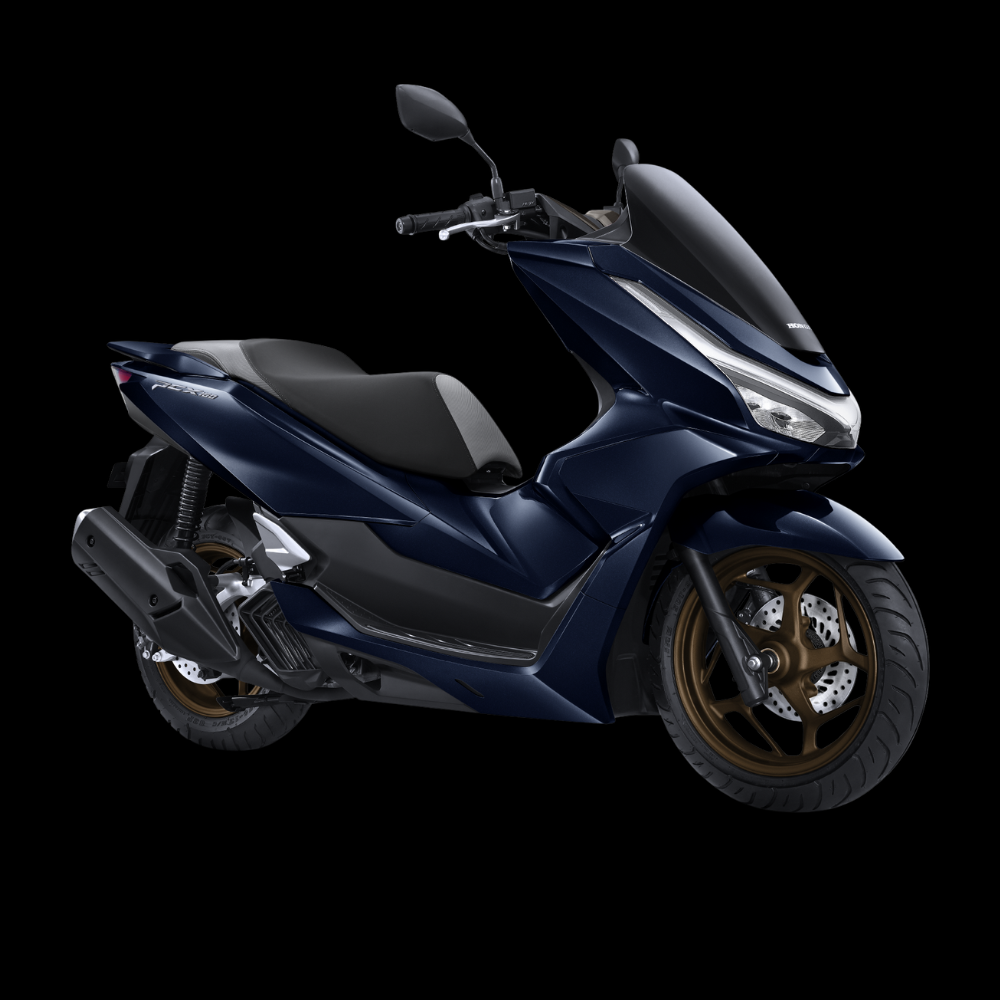

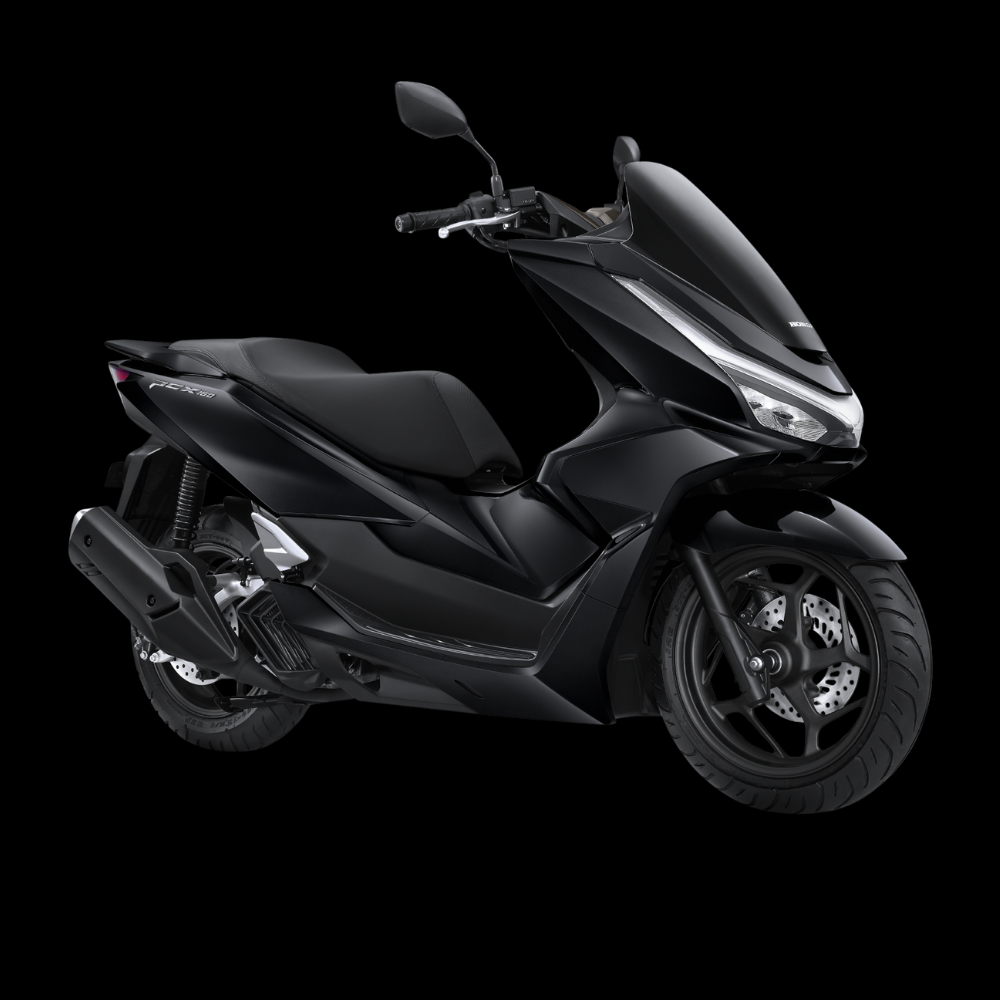

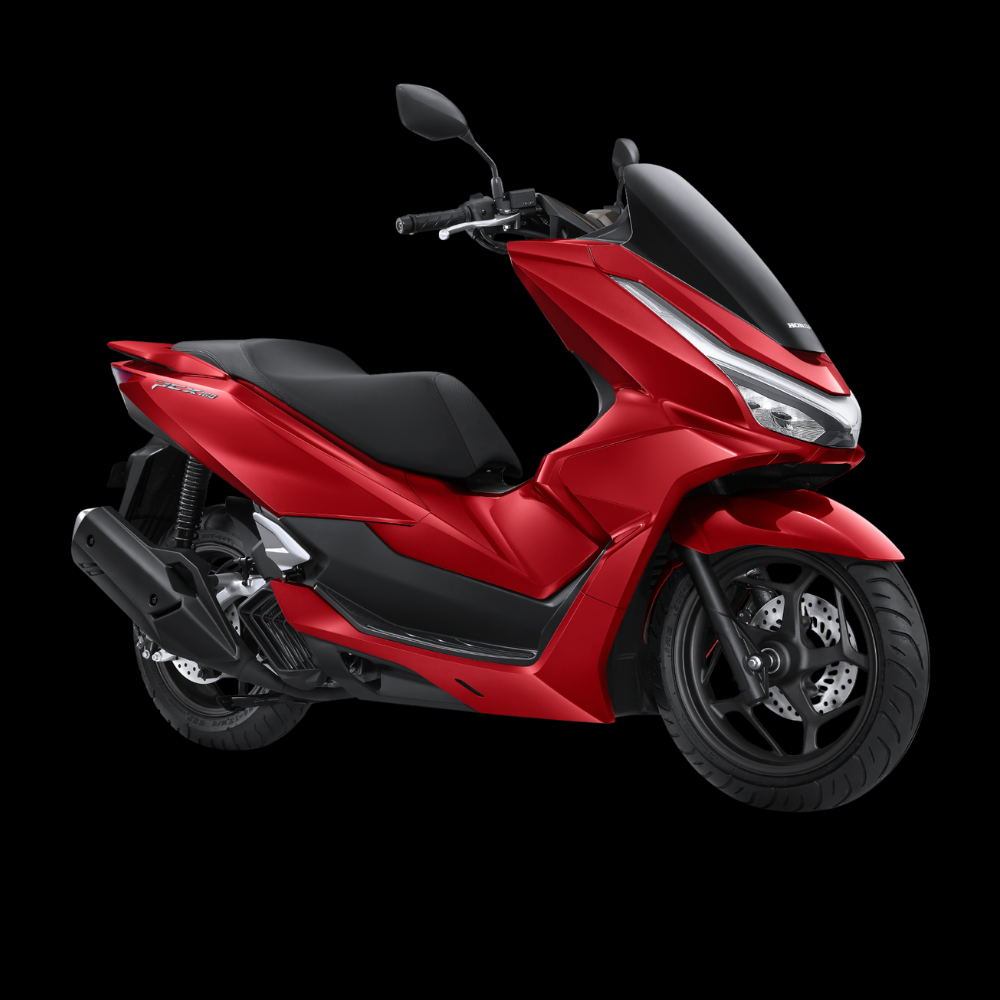

HONDA PCX 160

HONDA PCX 160 SPECIFICATION

Engine :

• Engine Type: 4-Stroke, 4-Valve, eSP+
• Cooling System: Liquid-Cooled
• Fuel System: PGM-FI (Programmed Fuel Injection)
• Displacement: 156.9 cc
• Bore x Stroke: 60.0 x 55.5 mm
• Compression Ratio: 12:1
• Maximum Power: 11.8 kW (16 PS) @ 8,500 rpm
• Maximum Torque: 14.7 Nm (1.5 kgf·m) @ 6,500 rpm
• Transmission Type: Automatic, V-Matic
• Starting System: Electric Starter
• Clutch Type: Automatic, Dry Centrifugal Clutch
• Engine Oil Capacity: 0.8 Liters (Periodic Change)

Chassis & Suspension :

• Frame Type: Double Cradle
• Front Tire Size: 110/70 – 14 M/C Tubeless
• Rear Tire Size: 130/70 – 13 M/C Tubeless
• Front Brake System: Hydraulic Disc Brake (CBS type: Triple Pot Hydraulic, Combi Brake System / ABS & RoadSync type: Anti-lock Braking System)
• Rear Brake System: Hydraulic Disc Brake
• Front Suspension Type: Telescopic Fork
• Rear Suspension Type: Dual Rear Suspension (CBS & ABS types) / Dual Rear Suspension with Sub-tank (RoadSync type)

Dimensions & Capacity :

• Length x Width x Height: 1,936 x 742 x 1,123 mm
• Wheelbase: 1,313 mm
• Minimum Ground Clearance: 135 mm
• Seat Height: 764 mm
• Curb Weight: 132 kg (CBS), 132 kg (ABS) & 133 kg (RoadSync)
• Fuel Tank Capacity: 8.1 liters

Electrical System :

• Ignition System: Full Transistorized
• Battery Type: 12 V – 5 Ah, MF type (Maintenance Free)
• Spark Plug Type: NGK LMAR8L-9
• Charger Output: 5V, 3A
