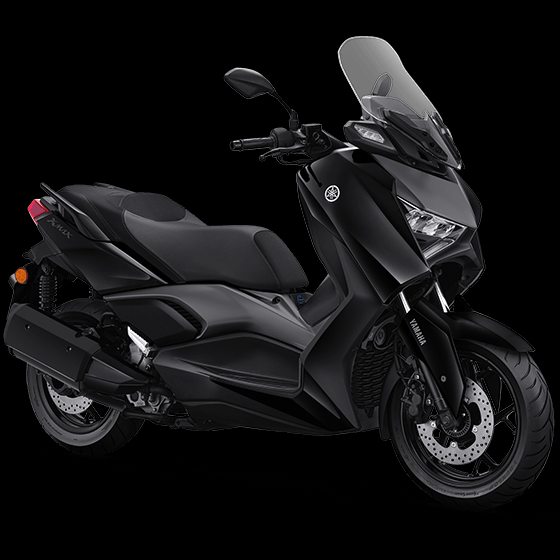

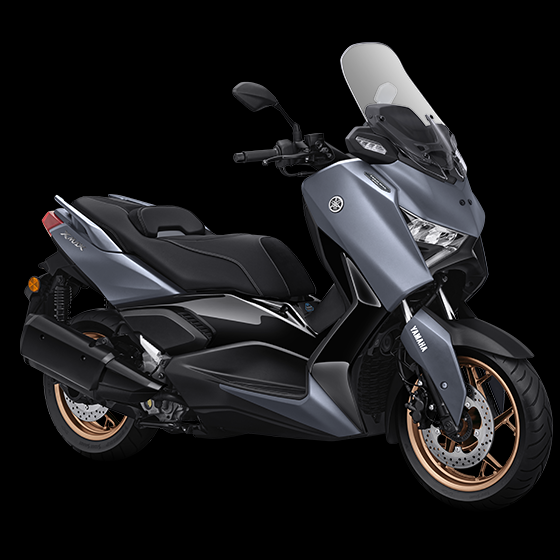

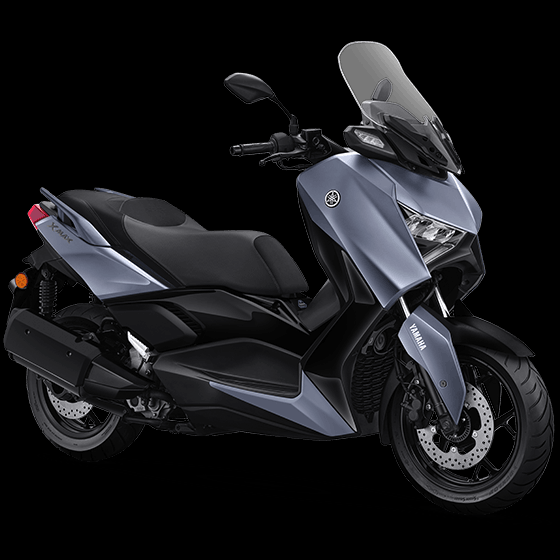

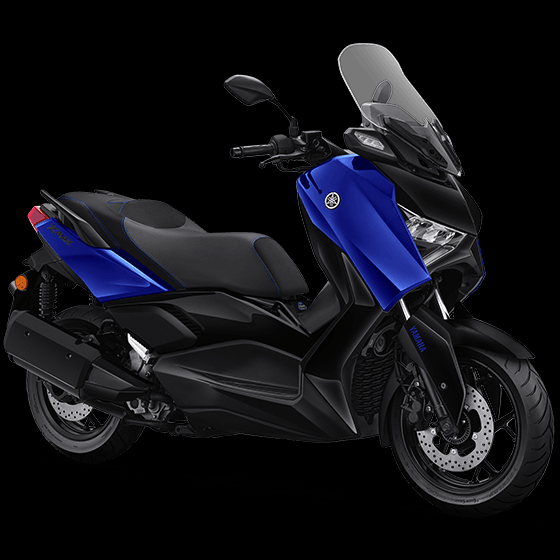

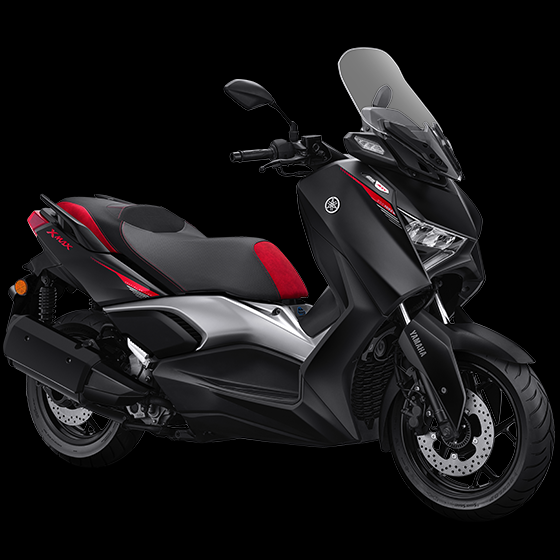

YAMAHA XMAX 250

YAMAHA XMAX 250 SPECIFICATION :

Engine :

• Engine Type: Liquid-Cooled, 4-Stroke, SOHC, 4-Valve
• Cylinder Arrangement: Single Cylinder
• Displacement: 249.8 cc
• Bore × Stroke: 70.0 mm × 64.9 mm
• Compression Ratio: 10.5 : 1
• Maximum Power: 16.8 kW / 7,000 rpm
• Maximum Torque: 24.3 Nm / 5,500 rpm
• Starting System: Electric Starter
• Lubrication System: Wet Sump
• Engine Oil Capacity: Total = 1.7 L; Periodic Change = 1.5 L
• Fuel System: Fuel Injection
• Clutch Type: Dry, Centrifugal Automatic Clutch
• Transmission Type: V-Belt Automatic Transmission

Chasis & Suspension :

• Front Tire: 120/70-15M/C 56P
• Rear Tire: 140/70-14M/C 62P
• Front Brake: Disc Brake
• Rear Brake: Disc Brake
• Frame Type: Backbone Frame
• Front Suspension: Telescopic Fork
• Rear Suspension: Unit Swing Suspension

Dimensions & Capacity :

• Overall Dimensions (L × W × H): 2,180 mm × 795 mm × 1,505 mm
• Wheelbase: 1,540 mm
• Ground Clearance: 135 mm
• Seat Height: 795 mm
• Curb Weight: 184 kg
• Fuel Tank Capacity: 13 L

Electrical :

• Battery: GTZ8V
• Spark Plug Type: NGK / LMAR8A-9
• Ignition System: TCI (Transistor Controlled Ignition)
