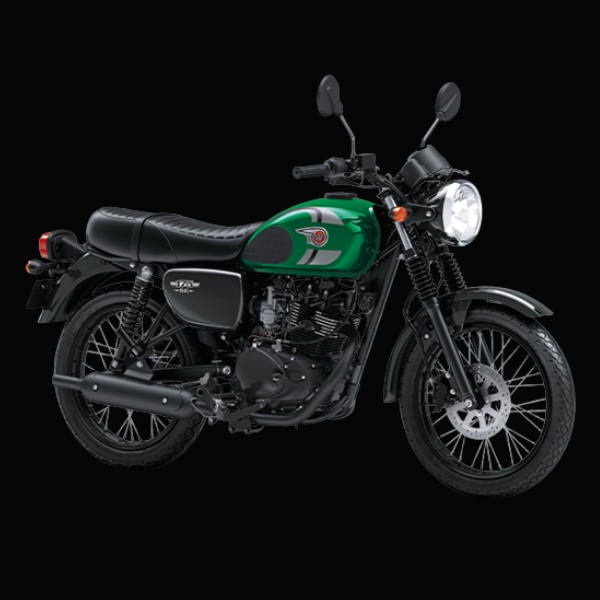

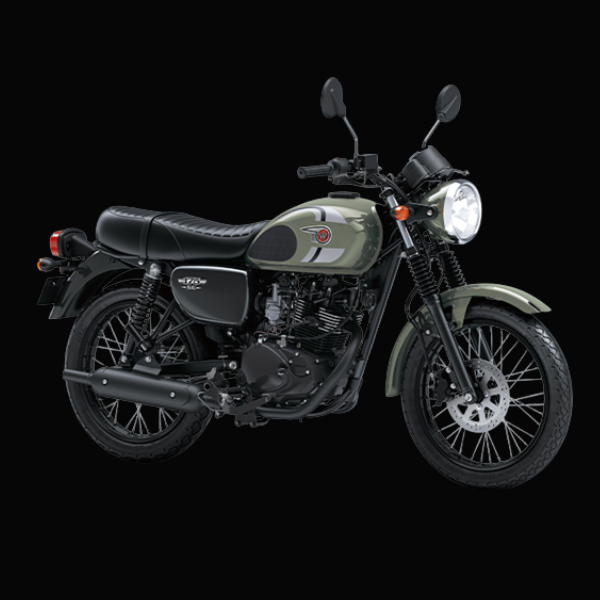

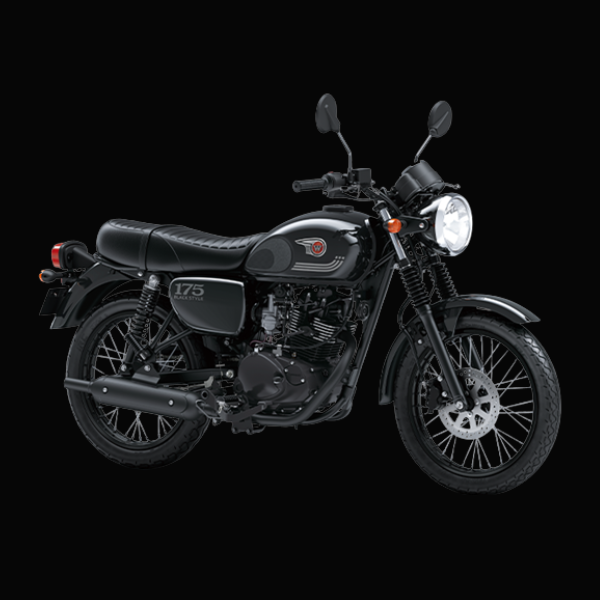

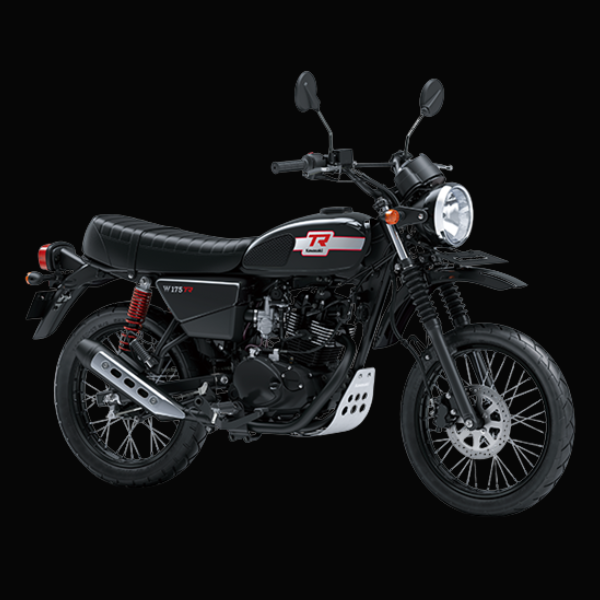

KAWASAKI W 175

Engine :

• Maximum Power: 9.6 kW (13 PS) @ 7,500 rpm
• Maximum Torque: 13.3 Nm (1.4 kgf·m) @ 6,000 rpm
• Engine Type: Air-Cooled, 4-Stroke, Single-Cylinder
• Displacement: 177 cc
• Bore x Stroke: 65.5 x 52.4 mm
• Compression Ratio: 9.1:1
• Valve System: SOHC, 2-Valve
• Fuel System: Fuel Injection (Ø28 mm × 1)
• Ignition System: Digital
• Starting System: Electric Starter
• Transmission Type: 5-Speed Manual (Return Shift)
• Primary Reduction Ratio: 3.667 (77/21)
• Final Reduction Ratio: 2.333 (35/15)
• Clutch Type: Wet Multi-Disc, Manual
• Final Drive System: Chain Drive

Chassis & Suspension :

• Frame Type: Semi-Double Cradle, Steel
• Front Suspension: Ø30 mm Telescopic Fork
• Rear Suspension: Swing Arm with Dual Shock Absorbers and Adjustable Spring Preload
• Front Wheel Travel: 110 mm
• Rear Wheel Travel: 64 mm
• Caster Angle / Trail: 26.0° / 78 mm
• Front Tire: 80/100-17M/C 46P
• Rear Tire: 100/90-17M/C 55P
• Front Brake: Ø270 mm Disc
• Front Brake Caliper: 2-Piston
• Rear Brake: Ø110 mm Drum Brake

Dimension & Weight :

• Length × Width × Height: 2,005 × 805 × 1,050 mm
• Wheelbase: 1,320 mm
• Ground Clearance: 150 mm
• Seat Height: 785 mm
• Curb Weight*: 135 kg
• Dry Weight**: 125 kg
• Fuel Tank Capacity: 12 Liters
