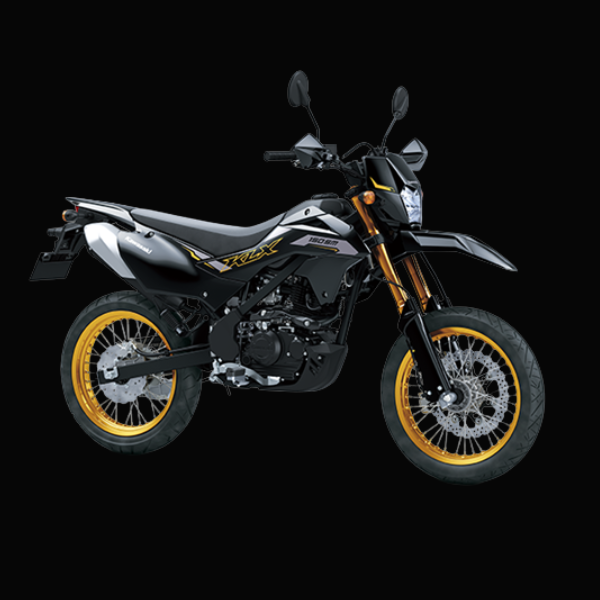

KAWASAKI KLX150 SM & SM SE (SUPERMOTO)

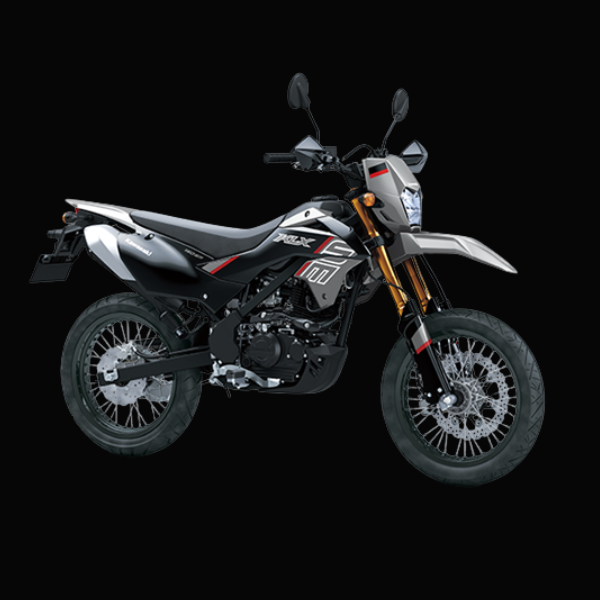

KAWASAKI KLX150 SM & SM SE (SUPERMOTO) - Image 2

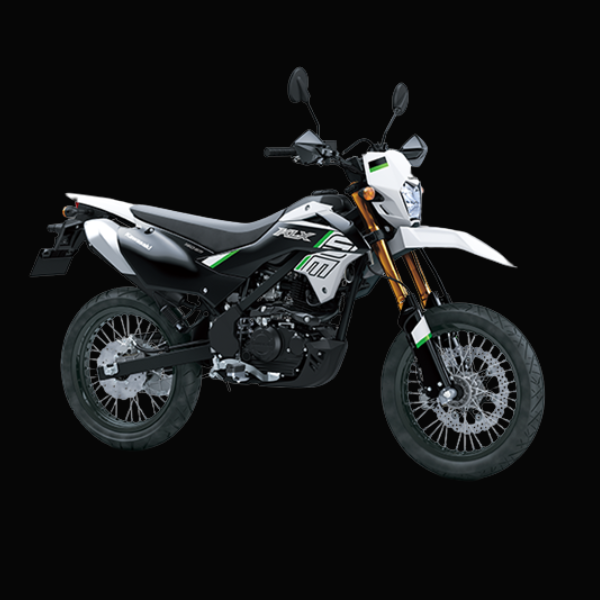

KAWASAKI KLX150 SM & SM SE (SUPERMOTO) - Image 3
KAWASAKI KLX150 SM & SM SE (SUPERMOTO) - Image 4
KAWASAKI KLX150 SM & SM SE (SUPERMOTO) - Image 5

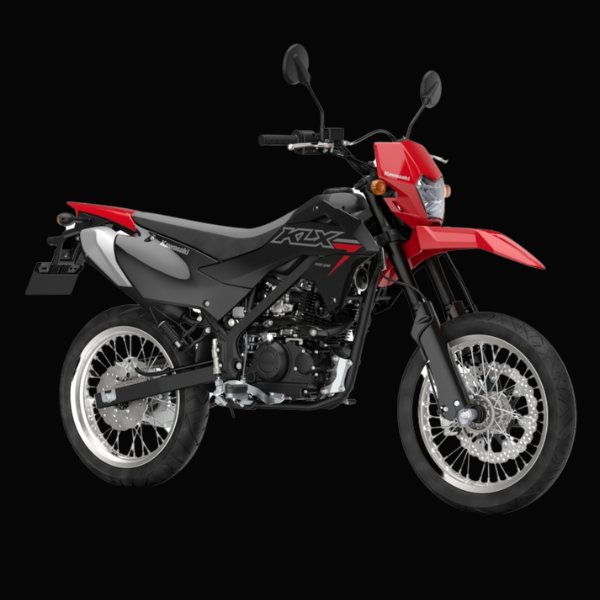

KAWASAKI KLX150 SM & SM SE (SUPERMOTO) - Image 6

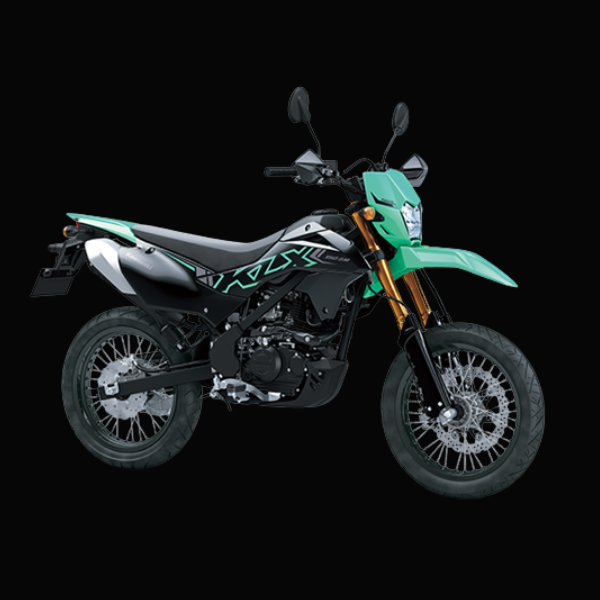

KAWASAKI KLX150 SM & SM SE (SUPERMOTO) - Image 7

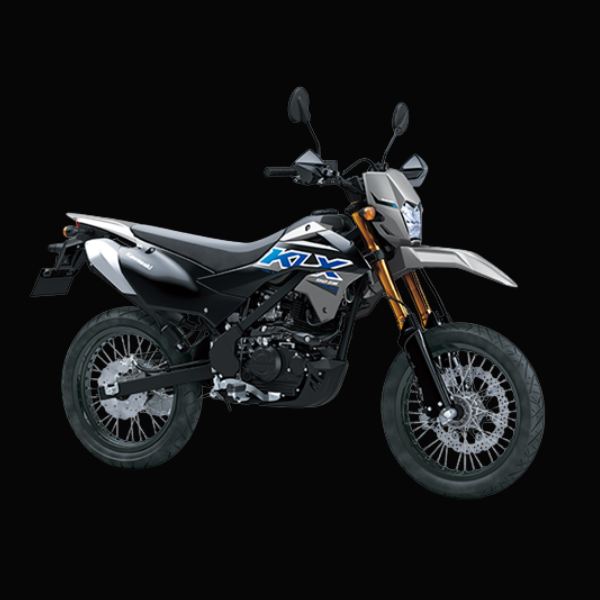

KAWASAKI KLX150 SM & SM SE (SUPERMOTO) - Image 8

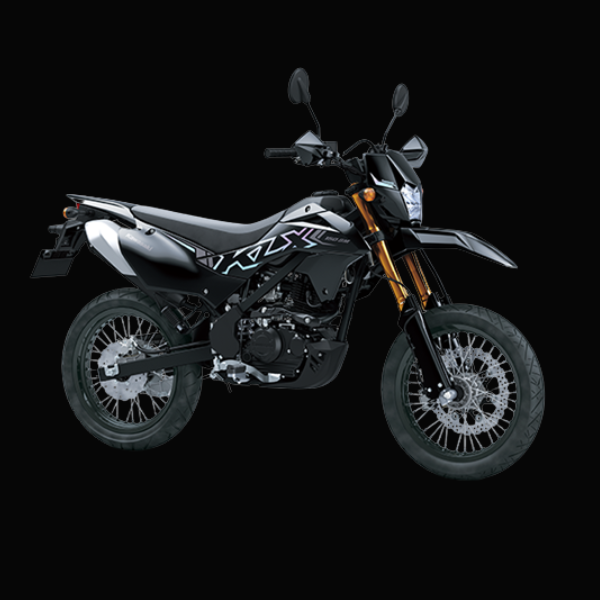

KAWASAKI KLX150 SM & SM SE (SUPERMOTO) - Image 9

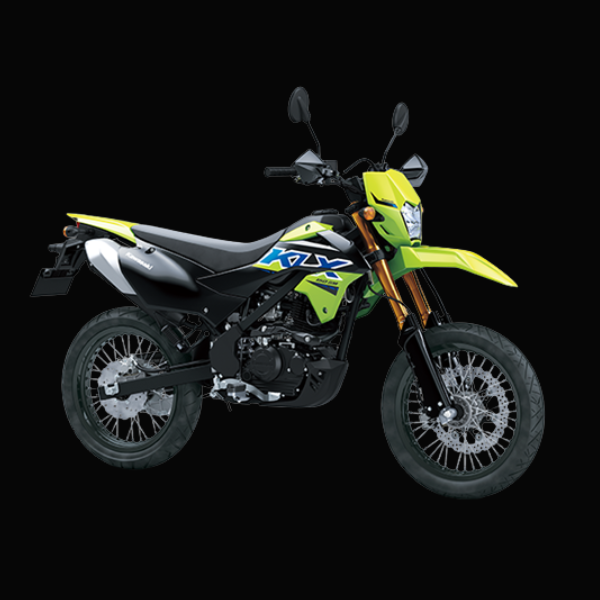

KAWASAKI KLX150 SM & SM SE (SUPERMOTO) - Image 10

KAWASAKI KLX150 SM & SM SE (SUPERMOTO)

SPECIFICATION :

Powertrain Details
Maximum Power 8.6 kW (12 PS) @ 8,000 rpm
Maximum Torque 11.3 Nm (1.2 kgf·m) @ 6,500 rpm
Engine Type Air-Cooled, 4-Stroke, Single Cylinder
Displacement 144 cc
Bore × Stroke 58.0 × 54.4 mm
Compression Ratio 9.5 : 1
Valve System SOHC, 2 Valves
Fuel System Keihin NCV24 Carburetor
Ignition System DC-CDI
Starting System Electric Starter
Transmission 5-Speed Manual, Return Shift
Primary Reduction Ratio 2.880 (72/25)
Final Reduction Ratio 3.214 (45/14)
Clutch Type Wet Multi-Disc, Manual
Final Drive Chain Drive

Key Features

  • 144 cc air-cooled, single-cylinder engine delivers dependable performance for daily commuting and light touring.
  • Maximum power of 8.6 kW (12 PS) at 8,000 rpm provides responsive acceleration.
  • Maximum torque of 11.3 Nm at 6,500 rpm ensures smooth and reliable low- to mid-range performance.
  • SOHC 2-valve engine offers a balance of efficiency, durability, and ease of maintenance.
  • Keihin NCV24 carburetor provides consistent fuel delivery and reliable engine performance.
  • 5-speed manual transmission delivers smooth gear changes and enhanced riding control.
  • Wet multi-disc clutch ensures efficient power transfer and long-lasting durability.
  • Chain final drive offers proven reliability and easy maintenance.
Performance / Chassis Details
Frame Type Perimeter, Steel
Front Suspension Ø35 mm Inverted Fork
Rear Suspension Uni-Trak® Single Shock with Adjustable Spring Preload
Front Wheel Travel 175 mm
Rear Wheel Travel 192 mm
Caster Angle / Trail 26.4° / 91 mm
Front Tyre 100/80-17M/C 52P
Rear Tyre 120/70-17M/C 58P
Front Brake Semi-Floating Ø300 mm Petal Disc
Front Brake Caliper Twin-Piston
Rear Brake Ø220 mm Petal Disc
Rear Brake Caliper Single-Piston

Key Features

  • Steel perimeter frame provides excellent rigidity and precise handling.
  • Ø35 mm inverted front fork delivers improved stability, responsive steering, and enhanced suspension performance.
  • Uni-Trak® rear suspension with adjustable spring preload offers superior comfort and adaptability to different riding conditions.
  • Long suspension travel (175 mm front / 192 mm rear) improves ride quality on both paved roads and uneven terrain.
  • 17-inch front and rear wheels provide excellent grip and handling.
  • Large petal disc brakes enhance heat dissipation and braking performance.
  • Twin-piston front caliper delivers strong and responsive braking power.
  • Single-piston rear caliper ensures balanced and controlled braking.
Dimensions Details
Overall Dimensions (L × W × H) 1,995 × 830 × 1,125 mm
Wheelbase 1,335 mm
Ground Clearance 275 mm
Seat Height 840 mm
Curb Weight* 119 kg
Dry Weight ** 113 kg
Fuel Tank Capacity 6.9 L

* Curb Weight: Weight of the motorcycle including all standard equipment, operating fluids, and a full fuel tank.
** Dry Weight: Weight of the motorcycle without fuel and other operating fluids.

Key Features

  • Compact overall dimensions provide agile handling for both urban riding and off-road adventures.
  • 1,335 mm wheelbase offers excellent stability and confident handling.
  • 275 mm ground clearance allows the motorcycle to tackle rough terrain and obstacles with ease.
  • 840 mm seat height provides an upright riding position for improved visibility and control.
  • Lightweight construction with a 119 kg curb weight enhances maneuverability and off-road capability.
  • 6.9-liter fuel tank delivers a practical riding range for both daily commuting and recreational riding.
Category: Tags: , , , , , Brand:
KLX150SM

SPORTY, QUICK-REVVING ENGINE

Power Fuels Fun

The 144 cc air-cooled, single-cylinder engine delivers smooth, user-friendly performance with outstanding reliability. Featuring longer gear ratios, the engine is tuned to maximize mid- to high-range performance, providing a more exciting and sporty riding experience. It offers quick throttle response and continues to deliver strong, consistent power as engine speed increases. The electric starter ensures effortless engine ignition with the simple push of a button.

SPORTY, QUICK-REVVING ENGINE

SLIM, LIGHTWEIGHT CHASSIS WITH 17-INCH WHEELS

Highly Rigid Perimeter Frame

The high-strength steel perimeter frame combines exceptional rigidity with a compact, lightweight design to deliver outstanding handling and effortless maneuverability. Paired with 17-inch wheels, the chassis provides enhanced stability, precise cornering, and responsive control, making it ideal for both urban streets and spirited riding.

SLIM, LIGHTWEIGHT CHASSIS WITH 17” WHEELS

SHARP SUPERMOTO STYLING

Aggressive Bodywork

Equipped with 17-inch wheels, the KLX150SM features sharp, aggressive bodywork that delivers a bold supermoto-inspired appearance. Its athletic styling highlights the motorcycle’s sporty character, while the modern design reflects its agile performance and dynamic riding capability.

SHARP SUPERMOTO STYLING

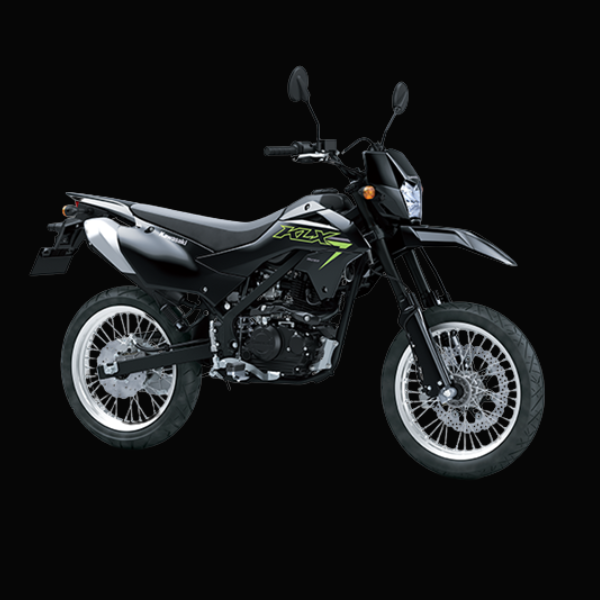

Image of 2027 KLX150SM in actionKLX150SM
