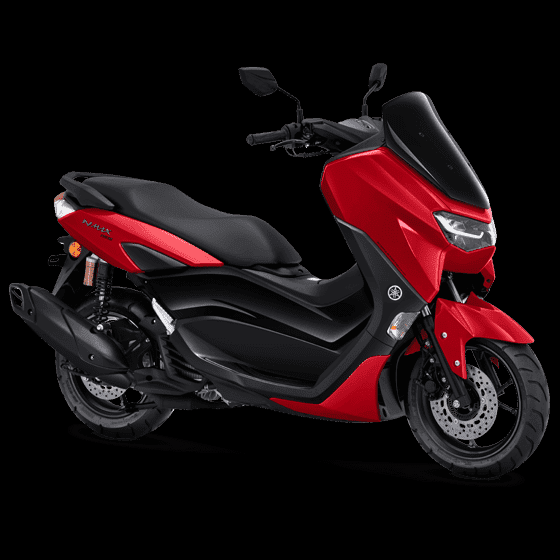

YAMAHA ALL NEW NMAX 155

YAMAHA ALL NEW NMAX 155 SPECIFICATION

Engine :

• Engine Type: Liquid-Cooled, 4-Stroke, SOHC, VVA
• Cylinder Arrangement: Single Cylinder
• Displacement: 155.09 cc
• Bore × Stroke: 58.0 mm × 58.7 mm
• Compression Ratio: 11.6 : 1
• Maximum Power: 11.3 kW / 8,000 rpm
• Maximum Torque: 13.9 Nm / 6,500 rpm
• Starting System: Electric Starter
• Lubrication System: Wet Sump
• Engine Oil Capacity: 0.9 L (Periodic Change)
• Fuel System: Fuel Injection
• Clutch Type: Single Dry Clutch
• Transmission Type: Automatic

Chassis & Suspension :

• Frame Type: Underbone
• Front Suspension: Telescopic Fork
• Rear Suspension: Unit Swing Suspension
• Front Tire: 110/70-13 M/C 48P
• Rear Tire: 130/70-13 M/C 63P
• Front Brake: Hydraulic Single Disc Brake
• Rear Brake: Hydraulic Single Disc Brake

Dimensions & Capacity :

• Overall Dimensions (L × W × H): 1,935 × 740 × 1,160 mm
• Wheelbase: 1,340 mm
• Ground Clearance: 124 mm
• Seat Height: 765 mm
• Curb Weight:
  • 130 kg (Standard & Connected Version)
  • 132 kg (Connected/ABS Version)
• Fuel Tank Capacity: 7.1 L

Electrical :

• Ignition System: TCI (Transistor Controlled Ignition)
• Battery: YTZ6V / YTZ7V
• Spark Plug Type: NGK / CPR8EA-9
