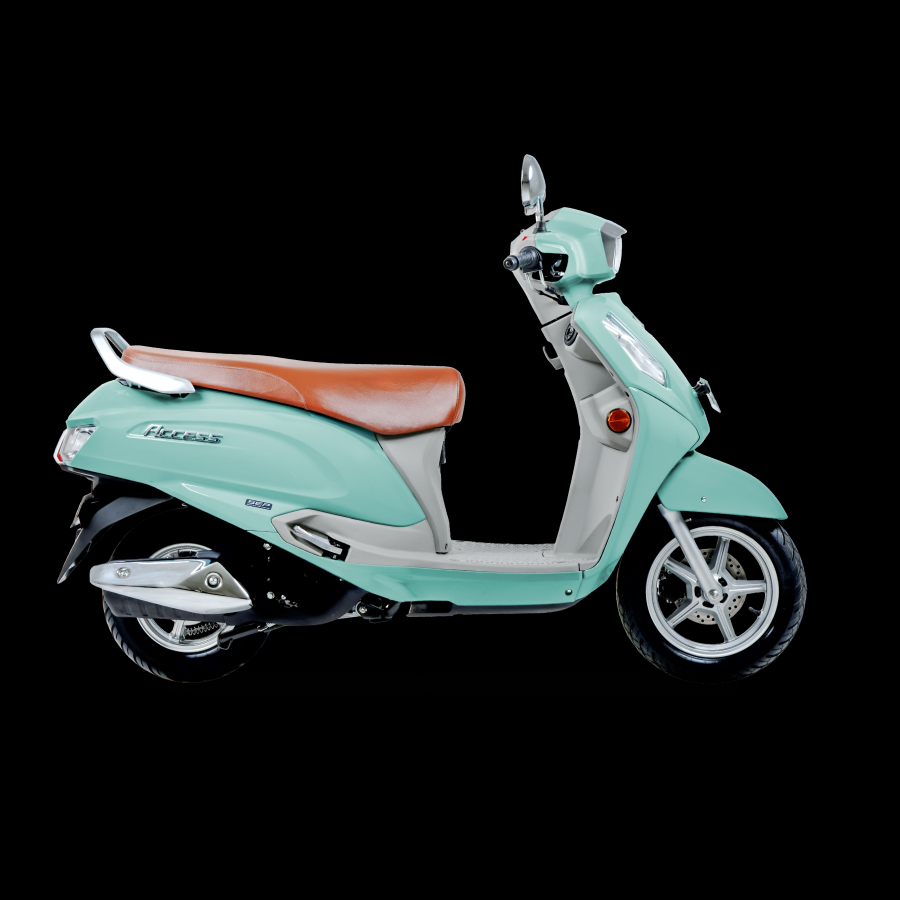

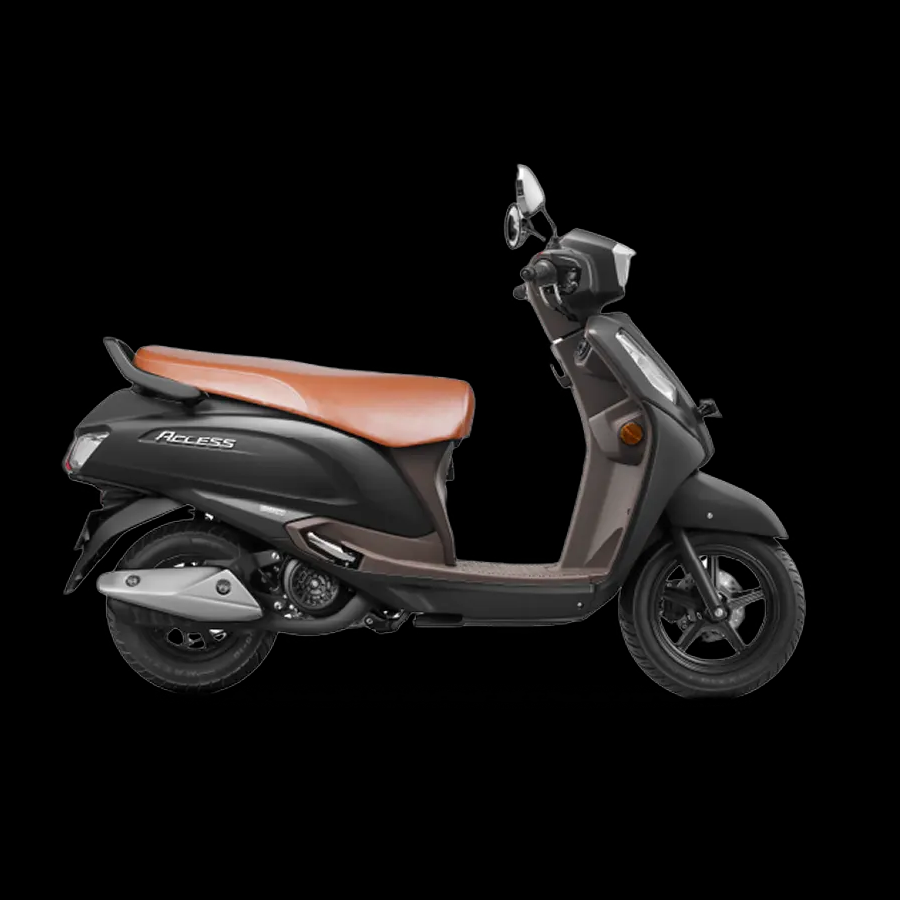

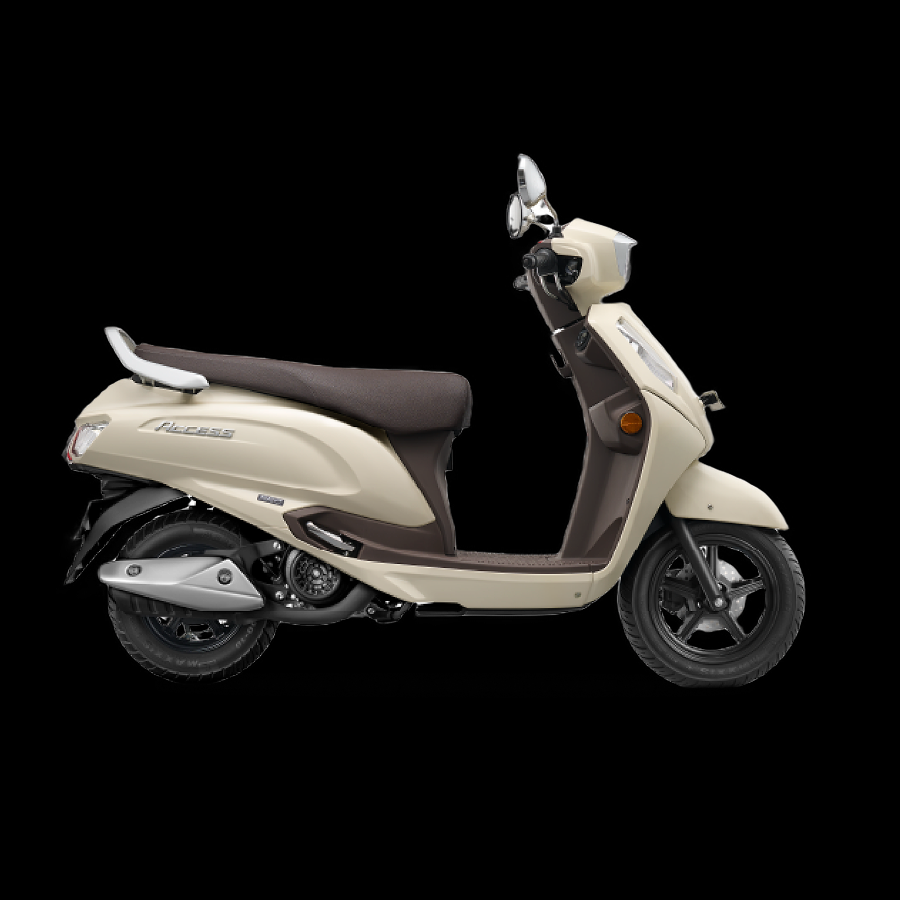

SUZUKI ACCESS 125

SUZUKI ACCESS 125 SPECIFICATION

Engine :

• Engine Type: 4-Stroke, Single Cylinder, Air-Cooled, SOHC
• Valve System: SOHC
• Bore x Stroke: 52.5 x 57.4 mm (2.1 x 2.3 in.)
• Engine Displacement: 124 cc (7.6 cu. in.)
• Compression Ratio: 10.3:1
• Maximum Power: 6.2 kW
• Maximum Torque: 10.2 Nm
• Fuel System: Fuel Injection
• Ignition System: Electronic Ignition (Transistorized)

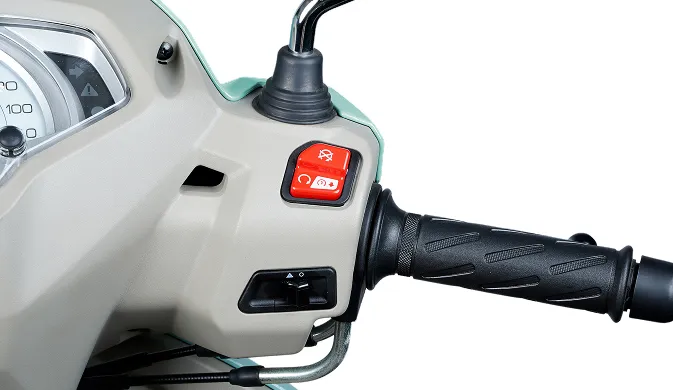

• Starting System: Electric & Kick Starter
• Transmission Type: CVT

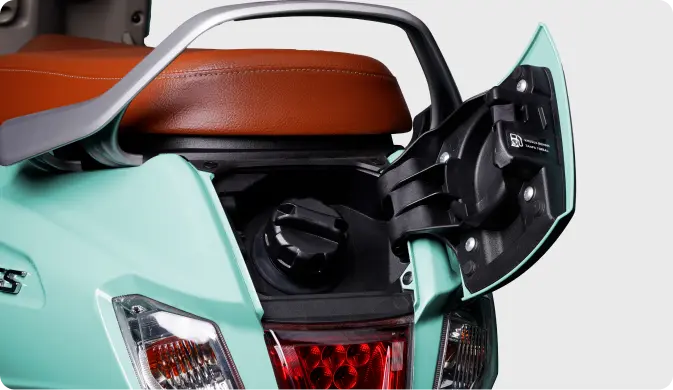

• Fuel Tank Capacity: 5.3 L (1.4 US gal / 1.2 Imp gal)

Dimension & Weight :

• Overall Length: 1,835 mm (72.2 in.)
• Overall Width: 690 mm (27.2 in.)
• Overall Height: 1,155 mm (45.5 in.)
• Wheelbase: 1,260 mm (49.6 in.)
• Ground Clearance: 160 mm (6.3 in.)
• Seat Height: 770 mm (30.3 in.)
• Curb Weight: 106 kg (233.7 lbs.)

Chassis & Suspension :

• Front Suspension: Telescopic, Coil Spring, Oil Damped
• Rear Suspension: Swingarm Type, Coil Spring, Oil Damped
• Front Brake: Disc Brake
• Rear Brake: Drum Brake
• Front Tire Size: 90/90-12 44J, Tubeless
• Rear Tire Size: 90/100-10 53J, Tubeless
• Wheel Type: Alloy Wheels

Electrical System :

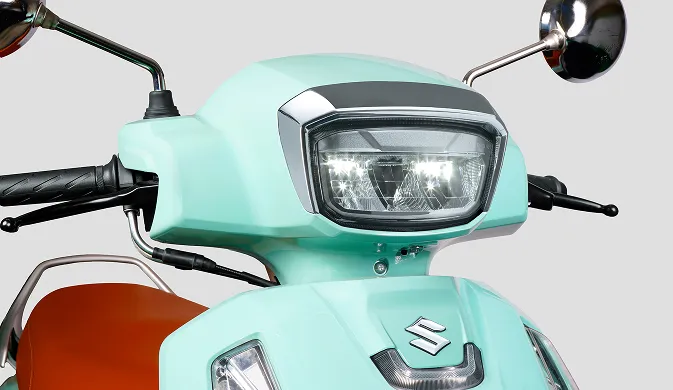

• Headlight: LED
